Duplex Pinless Design: Maximum mechanical reliability in severe marine and chemical services, eliminating shaft breach vulnerabilities under dynamic loads.
Configure Valve Specs
Precision Production Showcase
Direct-From-Factory Actuated & High-Tolerance Valves
Explore the initial tier of our high-integrity, automated, and certified fluid isolation systems manufactured with our verified metallurgical casting lines and proprietary elastomer seal compounding.
Grooved-End Series: Rapid-clamp installation for HVAC, building risers, and fire-main applications requiring zero alignment drift and low pressure drops.
Configure Valve Specs
Aluminum Bronze Seating: Uncompromising resistance to microbiologically induced corrosion, brackish water pitting, and marine bio-fouling.
Configure Valve Specs
Semi-Shaft Wafer: Optimized hydrodynamic disk geometry providing elevated flow coefficients (Cv) and reduced operating actuation torque.
Configure Valve Specs
Pure PTFE Chem-Barrier: Isostatic molded virgin fluoropolymer lining for non-permeable isolation of aggressive pickling acids and solvents.
Configure Valve Specs

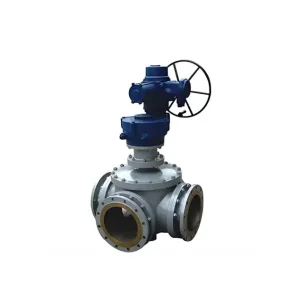

3-Way Emergency Diversion: Ultra-fast multiport automation for critical bypass safety loops, ESD shutoff manifolds, and blending systems.
Configure Valve Specs
Integrated Supervisory Signal: Built-in tamper switches for continuous SCADA integration across high-hazard commercial fire deluge grids.
Configure Valve Specs
Wafer Non-Return Core: High-speed dynamic response spring-assisted closing to defeat hydraulic water hammer in high-lift pumping systems.
Configure Valve Specs
Industry Whitepaper & Market Dynamics
The Engineering Evolution: From Manual Wedge to Autonomous Pipeline Gates
A rigorous examination of fluid automation trends, functional safety integrations, predictive maintenance loops, and why legacy mechanical gate designs are being replaced by automated intelligence.
Smart Actuation & Industrial IoT
Modern automated gate valves have transitioned from basic mechanical isolation units into cyber-physical sensor nodes. Utilizing intelligent electric multi-turn actuators or electro-hydraulic power units, they transmit real-time motor current draw, dynamic seating torque, stem travel profiles, and temperature curves back to enterprise SCADA platforms. This eliminates sudden catastrophic line blockage and supports automated predictive maintenance.
SIL-2 / SIL-3 Functional Safety
Within high-consequence process plants, automated gate valves are integral to Emergency Depressurization (EDP) and Safety Instrumented Systems (SIS). By coupling fail-safe spring return pneumatic cylinders or hydraulic accumulator racks, our gate valves execute guaranteed stroke completion even during complete site blackouts, complying strictly with IEC 61508 / IEC 61511 functional risk standards.
Mitigating Water Hammer & Cavitation
Unlike rapid quarter-turn designs, automated gate valves offer linearly calibrated disc advancement. Multi-stage motorized speed profiling allows the actuator to close rapidly through 80% of travel, decelerating dynamically over the final 20% of seat engagement. This prevents catastrophic fluid column separation, hydraulic pressure spikes, and cavitation damage in large-diameter conveyance lines.
Zero-Fugitive Emissions Sealing
Environmental standards including ISO 15848-1 and TA-Luft necessitate redesigned bonnet stuffing boxes and dynamic stem seals. Our automated gate valves deploy pre-compressed live-loaded Belleville spring packing glands combined with virgin graphite and PTFE composite rings, ensuring zero external fugitive VOC and hazardous chemical leakage across tens of thousands of mechanical cycles.
Procurement & Engineering Standards
Global Enterprise Procurement Matrix: Material Selection & Torque Criteria
Procurement teams require total visibility over metallurgical grade declarations, seating friction factors, and actuator safety margins. Review our baseline structural specification table below.
| Automated Valve Category | Nominal Size & Class | Body / Bonnet Metallurgy | Wedge / Disc & Trim | Actuator Drive Architecture | Standard Compliance |
|---|---|---|---|---|---|
| Resilient-Seated Gate | DN50 - DN1200 / PN10-PN25 | Ductile Iron GGG50 / EN-GJS-500-7 | Ductile Iron Fully Vulcanized EPDM | Intelligent Electric Multi-Turn / IP68 | EN 1171 / DIN 3352 |
| OS&Y Industrial Wedge Gate | 2" - 48" / Class 150 to 900 | ASTM A216 WCB / WCC / Cast Steel | 13Cr / Stellite Hardfaced Trim #8 / #5 | Pneumatic Piston / Electro-Hydraulic | API 600 / ASME B16.34 |
| Stainless Pipeline Gate | 1/2" - 24" / Class 150 - 600 | ASTM A351 CF8M / CF3M / Duplex 2205 | 316SS / Monel / Inconel Overlaid | Fail-Safe Spring Electric / Modbus RTU | API 603 / ISO 10434 |
| High-Performance Knife Gate | DN50 - DN1600 / PN6 - PN16 | Ductile Iron / CF8M / WCB | AISI 316L / 17-4PH Hardened Beveled Blade | Double-Acting Pneumatic Cylinder + Limit SW | MSS SP-81 / TAPPI |
| Through-Conduit Slab Gate | 2" - 36" / Class 150 - 1500 | ASTM A105 / A216 WCB / LF2 Forged | ENP Plated Carbon Steel / Metal-to-Metal | High-Pressure Gas-over-Oil / Hydraulic | API 6D / ISO 14313 |
Factory Heritage & Vertical In-House Control: Our corporate ecosystem directly controls Tianjin Donglian Valve Factory (established 1996) and Tianjin Dongfang Rubber Factory (founded 1987). Unlike trading middlemen, our foundry and clean-room rubber compounding lines eliminate supplier-to-supplier manufacturing variations.
From pouring ductile and duplex casting heats to formulating sulfur-cured or peroxide-cured EPDM elastomers, our laboratory verifies tensile strength, compression set, and elongation properties prior to precision CNC machining.
Turnkey System Integration
Comprehensive Engineering Solutions for Macro Infrastructure
Automatic gate valves operate in environments where unplanned downtime costs tens of thousands of dollars per hour. We architect tailor-made flow solutions for high-hazard and utility deployments.
Municipal Water Grids & Smart Metering
Cities operating pressurized distribution networks leverage our non-rising stem (NRS) resilient-seated automatic gate valves. With NSF/ANSI 61 and WRAS-certified non-toxic EPDM encapsulation, internal corrosion is eliminated. Solar-powered low-power actuators equipped with cellular NB-IoT or LoRaWAN modems facilitate automatic pressure zoning, district metered area (DMA) partitioning, and line isolation without digging up roadways.
Thermal & Combined-Cycle Power Plants
Our cast and forged alloy steel automatic gate valves (WC6, WC9, C12A) are engineered for main steam isolation, boiler feedwater loops, and turbine bypass circuits operating above 540°C and 150 bar. Equipped with high-thrust electric actuators featuring rapid stroke emergency closure (<3 seconds), they safeguard multi-million-dollar turbine assets against catastrophic steam backdraft and thermal runaway.
Aggressive Slurry & Tailings Dewatering
For mining concentrators, pulp mills, and coal ash disposal, standard gate valves face rapid seat erosion and jam from accumulated particulate. Our automated knife gate valves integrate bi-directional elastomer sleeves, scrapers, and hardened stainless steel beveled gates that sheer through 30%+ mineral slurry concentrations without bonnet cavities where solids can pack and cause mechanical lockup.
Refinery Cracking & Hydrocarbon Terminals
In midstream crude custody transfer and downstream refining units, through-conduit slab gate valves provide a smooth continuous bore that minimizes fluid turbulence and enables unhindered pigging passes. Double block and bleed (DBB) capabilities allow verification of internal cavity seal integrity while the automated valve remains under full operating line pressure.
Quality Assurance Protocols
Global Compliance, Metallurgical Traceability & Factory Witness Testing
Reliability is built on verifiable documentation. Every automatic gate valve leaving our facility is certified with comprehensive Material Test Reports (EN 10204 3.1) and full non-destructive testing (NDT) logs.
100% Hydrostatic Pressure Verification
In compliance with API 598, EN 12266-1, and ISO 5208, every valve shell is hydrostatically tested to 1.5x nominal pressure rating, while bidirectional seat closure is tested to 1.1x with zero observable leakage allowable on resilient seated configurations. High-pressure pneumatic gas testing (6 bar) is optionally conducted for hazardous hydrocarbon isolation duties.
Universal Global Flange Standards
We machine bodies to match international customer interfaces without pipeline rework: EN 1092-2 (PN6/10/16/25/40), ASME/ANSI B16.5 & B16.47 (Class 150/300/600/900), Australian AS 2129 / AS 4087, and Japanese JIS B2220 / B2062. Face-to-face dimensions comply strictly with EN 558 Series 14/15, DIN 3202 F4/F5, and ASME B16.10.
Advanced Actuation Diagnostics
Actuator packages (Auma, Rotork, SIPOS, or custom engineered drives) are calibrated in our clean instrument workshop. Testing includes 4-20mA current loop accuracy, HART handshaking, high-speed fail-safe trip time validation, open/closed limit switch repeatability, and continuous mechanical stall-torque threshold verification.
Forward-Looking Innovation
Technological Roadmap: The Next Decade in Industrial Flow Intelligence
The manufacturing sector is advancing toward self-diagnosing, energy-harvesting, and zero-maintenance automated gate valves. Our R&D team is proactively deploying three key technical frontiers.
Embedded Acoustic Emission Leak Sensors
By embedding non-intrusive piezo-ceramic acoustic sensors directly into the gate valve body cavity, our next-generation assemblies detect high-frequency micro-acoustic signatures generated by through-seat laminar-to-turbulent leakage long before pressure drops register on supervisory sensors. This delivers actionable early warning for flammable or toxic pipeline services.
Micro-Turbine Kinetic Energy Harvesting
For remote, off-grid water conduits and cross-country pipelines where pulling grid electricity costs upwards of $50,000 per mile, we are integrating internal hydrodynamic micro-turbines. The fluid flow generates autonomous low-voltage power to charge actuator lithium-iron-phosphate (LiFePO4) storage cells, supporting automated actuation cycles indefinitely.
Nanostructured Multi-Layer PVD Hardcoatings
To multiply seat life cycle endurance tenfold against abrasive sand and corrosive mineral acids, we are introducing Physical Vapor Deposition (PVD) titanium aluminum nitride (TiAlN) and diamond-like carbon (DLC) coatings onto valve wedges and sliding knife surfaces, yielding surface hardness levels exceeding 3000 Vickers (HV).
Technical Inquiry Clearance
Engineers' Deep FAQ: Sizing, Actuation & Application
Comprehensive answers addressing core technical hurdles, actuator sizing safety margins, and maintenance protocols for automated gate valve procurement.
How is actuator torque and thrust calculated for automatic gate valves?
Actuator sizing accounts for stem diameter, pitch, thread lead, packing friction, dynamic fluid drag, and differential pressure across the disc. We enforce a minimum safety factor of 1.3x to 1.5x over calculated breakaway seating/unseating torque to prevent stalling during cold start or scale buildup conditions.
What is the practical difference between Rising Stem (OS&Y) and Non-Rising Stem (NRS)?
Outside Screw & Yoke (OS&Y) designs expose stem threads outside the flow medium, simplifying lubrication and providing instant visual confirmation of gate travel position—ideal for above-ground plant safety. Non-Rising Stem (NRS) designs preserve compact vertical clearance, making them ideal for buried service, water vaults, and shipboard engine rooms.
Can automatic gate valves be deployed for flow throttling and regulation?
Standard wedge gate valves are strictly on/off devices. Operating them in intermediate partially open states triggers high-velocity fluid vortexing, disc flutter, and localized seat erosion ("wire-drawing"). For precise modulation, we supply engineered regulating multi-port valves or custom V-port knife gate configurations.
How does your foundry guarantee casting integrity against internal porosity?
Our in-house foundry operates optical emission spectrometers to verify melt chemical compositions prior to pouring. Castings undergo 100% magnetic particle inspection (MPI) on critical stress nodes, with ultrasonic testing (UT) and radiographic examination (RT) executed in accordance with ASME B16.34 requirements.
What protocols ensure compatibility with SCADA, DCS, and PLC networks?
Our automated packages interface with Modbus RTU, Profibus-DP, Foundation Fieldbus, and Industrial Ethernet (PROFINET, EtherNet/IP). Hardwired emergency stop contacts, programmable torque alarm limits, and continuous 4-20mA position feedback sensors provide full digital parity.
How are fail-safe requirements addressed during complete line power loss?
We supply pneumatic piston actuators fitted with high-integrity pre-compressed spring return cylinders, or electric actuators backed by dedicated uninterruptible power supply (UPS) / capacitor energy modules that automatically complete the full closing stroke upon detecting loss of primary utility electricity.
High-Performance Complementary Lineup
Industrial Valve Engineering Range: Isolation, Non-Return & Throttling
Review the second half of our specialized, factory-direct valve line-up, fully certified and production-tested to complement automated pipeline installations worldwide.
Stainless Single Disc Wafer Check: Thin face-to-face footprint offering dependable reverse-flow closure in corrosive chemical piping installations.
Configure Valve Specs

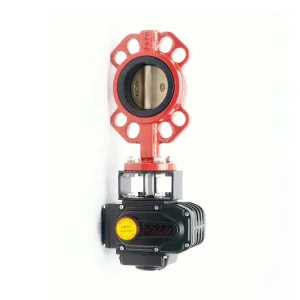

Factory Actuated Wafer Butterfly: Direct ISO 5211 mounting bracket design coupled with high-output electric or pneumatic automation actuators.
Configure Valve Specs
Low Delta-P Wafer Lift Check: Hydrodynamically profiled disc delivers whisper-quiet non-slam response and minimal head loss across pumping stations.
Configure Valve Specs
Silent Anti-Water Hammer Check: Spring-centered guided poppet closes smoothly fractions of a second prior to fluid flow reversal in tall building booster pumps.
Configure Valve Specs
High-Pressure Eccentric Plug: Frictionless cam-action seating engineered specifically for hydrocarbon slurries, viscous crudes, and abrasive solids.
Configure Valve Specs
Pneumatic Fast-Trip Butterfly: Rapid cycling actuation with rack-and-pinion actuators, solenoid pilots, and proximity feedback positioners.
Configure Valve Specs

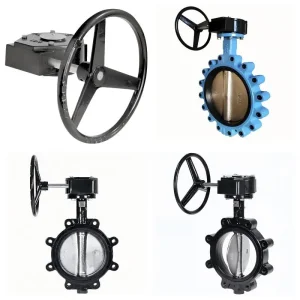

WRAS-Certified 4325G Lug Series: Full UK potable water approval featuring pristine vulcanized non-leaching liners for dead-end pipeline isolation.
Configure Valve Specs
Pinless Heavy Rubber-Lined: Absolute isolation between media and valve shaft, providing extreme resilience in acidic and caustic industrial services.
Configure Valve Specs
