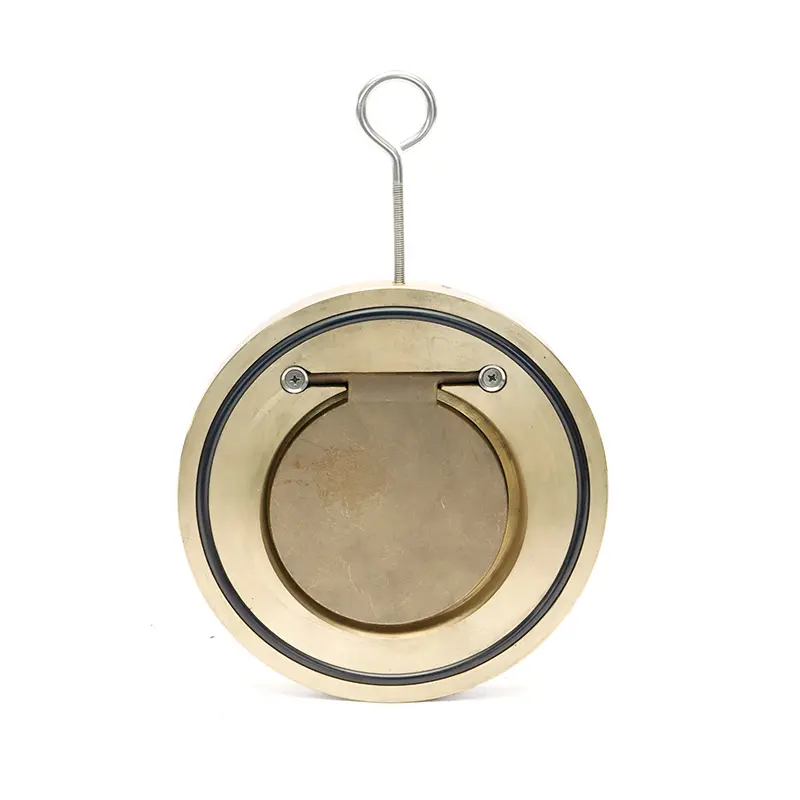

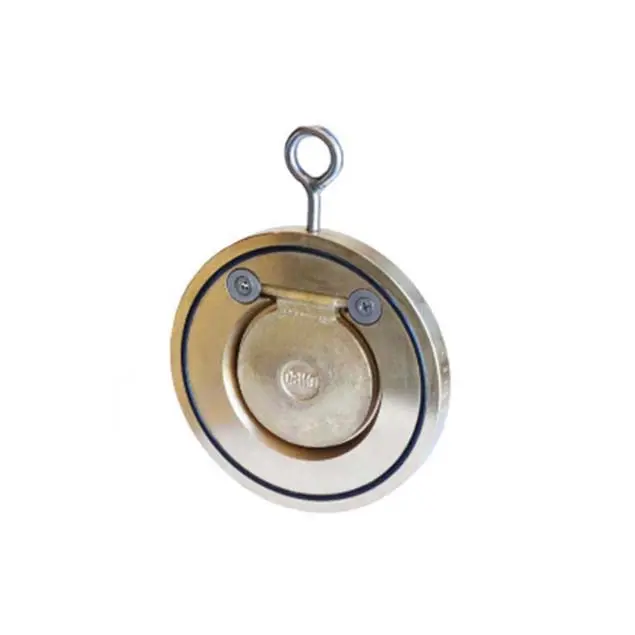

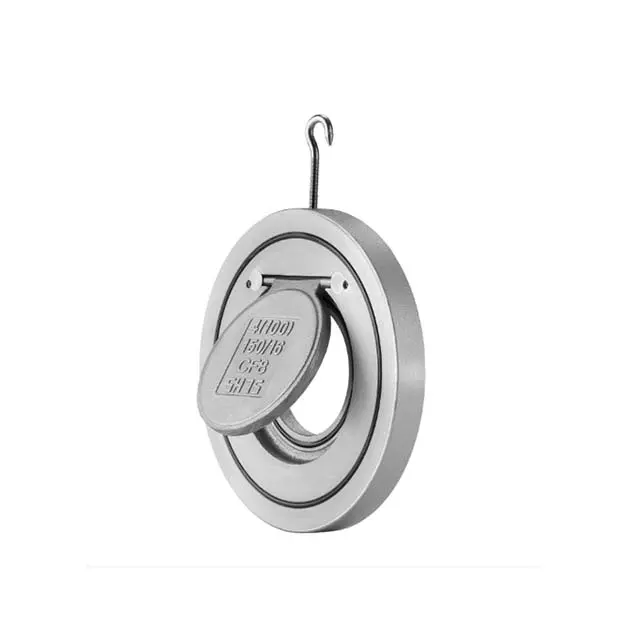

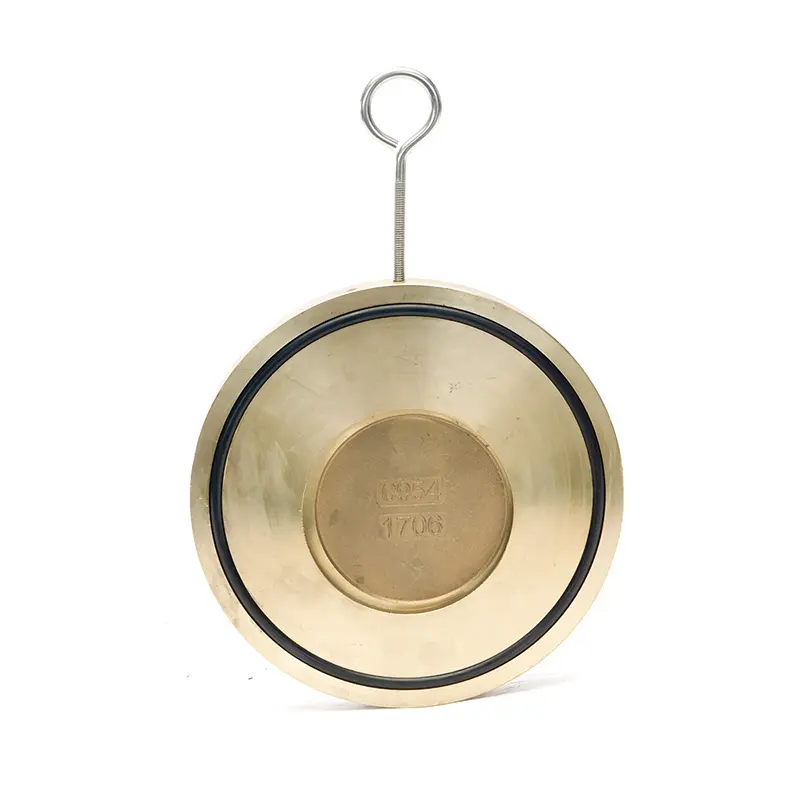

CE Certification Stainless Steel Single Disc Wafer Check Valve with Enhanced Corrosion Supplier, Manufacturers

A check valve,clack valve, non-return valve or one-way valve is a valve that normally allows fluid(liquid or gas) to flow through it in only one direction.
Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are available in a wide range of sizes and costs, check valves generally are very small,simple or inexpensive. Check valves work automatically and most are not controlled by a person or any external Control; accordingly, most do not have any valve handle or stem.
The bodies(external shells) of most check valves are made of metal or palstic.

Send Inquiry

Product Description

Product Usage and Features

Short structure length, compact dimensions, and lightweight design for easy installation, storage, and reduced pipeline material costs.

Integral, compact structure with low closing impact, reduced water hammer pressure, high reliability, and extended service life.

Flexible installation in horizontal or vertical pipelines without requiring extra pipeline support due to its light weight.

Smooth flow path with minimal fluid resistance; disc fully opens under small differential pressure, ideal for tight installation spaces in water supply, petroleum, chemical, and metallurgical systems.

Outside mounted accessories are externally supported for steady performance.

Engineered for increased control of valve performance and fluid stability.

Durable sealing design provides significantly extended body seal life.

Advanced sealing configuration delivers enhanced fugitive emissions control.

Stainless Steel Single Disc Wafer Check Valve Specifications

Material	SS304 / 316 / 304L / 316L (CF8 / CF8M / CF3 / CF3M), WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, etc.
Size Range	2'' – 24'' (DN50 – DN600)
Valve Type	Wafer Type
Standard / Certification	ISO9001, CE, TS
Working Pressure	Class 150LB / 300LB / 600LB / 900LB / 1500LB
Applicable Standards	API 594, API 6D
Working Temperature	-29°C ~ 425°C (or customizable based on industrial requirements)
Suitable Medium	Water, Natural Gas, Oil, and corrosive liquids
Inspection & Testing	API 598 / DIN 3230

Packaging & Delivery

Frequently Asked Questions

Q What are the key benefits of using a single disc wafer check valve?

The single disc wafer check valve features an ultra-short face-to-face dimension, compact profile, and light weight. This substantially simplifies handling, saves pipe layout space, and lowers installation costs while offering low fluid resistance and reliable backflow prevention.

Q Can this check valve be mounted vertically?

Yes, it can be installed in both horizontal and vertical pipeline layouts. Due to its lightweight structure, additional support brackets are generally not required.

Q What body materials are available for corrosive working conditions?

For corrosive or demanding applications, we offer stainless steel grades including SS304, SS316, SS304L, and SS316L (CF8/CF8M/CF3/CF3M), as well as alloy steels like WC6, WC9, C5, and C12.

Q What manufacturing and testing standards are complied with?

The valve is designed according to API 594 and API 6D standards, certified with ISO9001, CE, and TS, and fully inspected and tested under API 598 or DIN 3230 standards.

Q How does the valve reduce water hammer?

Its integral, compact construction and short disc travel distance ensure fast closing with low impact force, effectively minimizing water hammer pressure and extending pipeline equipment longevity.

Q What pressure classes and sizes are supported?

Nominal sizes range from 2 inches to 24 inches (DN50 to DN600), with working pressures ranging from Class 150LB up to Class 1500LB.
