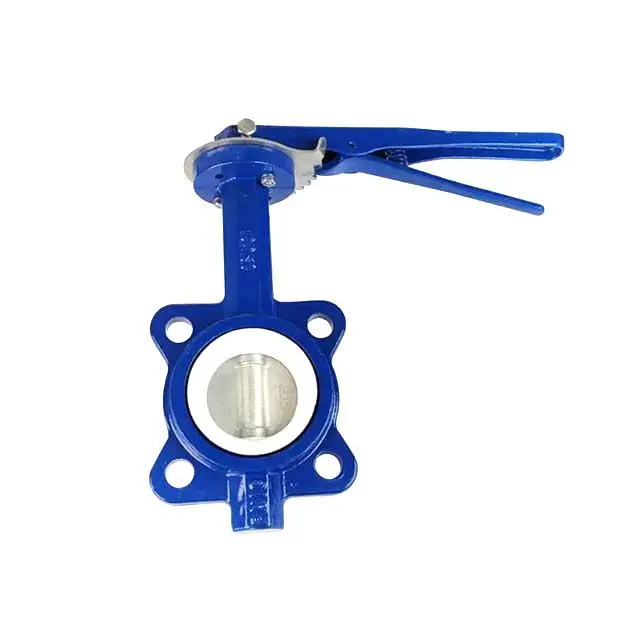

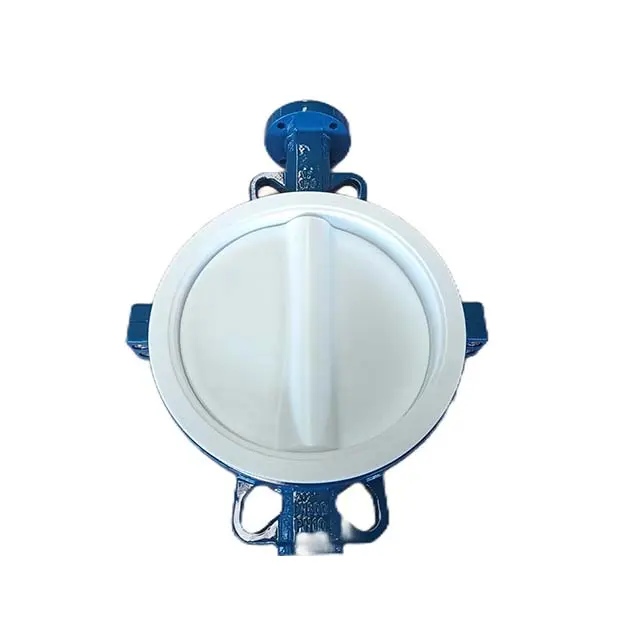

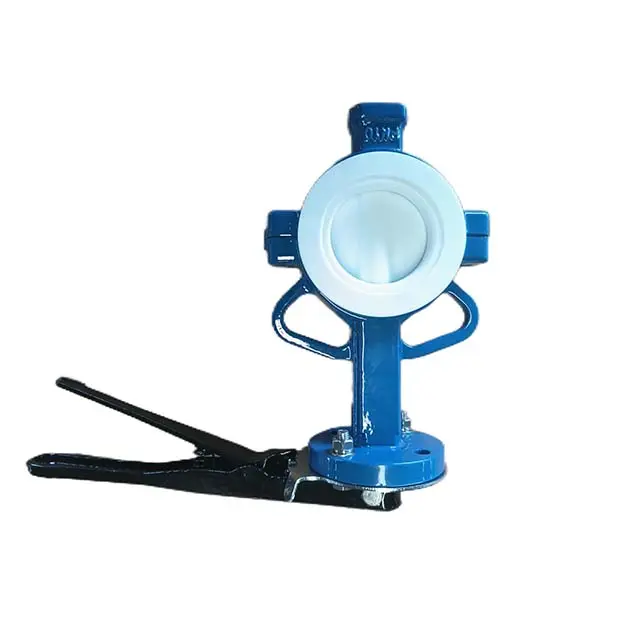

High-Quality PTFE Lined Pinless Butterfly Valve Supplier, Factories

PTFE is generally called non-stick coating or easy-to-clean material. It is a synthetic polymer material that uses fluorine to replace all hydrogen atoms in polyethylene. It is widely used in chemical, petrochemical, oil refining, chlor-alkali, phytic acid, phosphate fertilizer, pharmaceutical, pesticide, chemical fiber, dyeing, coking, gas, organic synthesis, non-ferrous metallurgy, steel, atomic energy and polymer filtration materials, high-purity product production (such as ion membrane electrolysis), viscous material transportation and operation, food and beverage processing and production departments with highly stringent hygiene requirements.

Send Inquiry

Product Description

Application

1. Good wear resistance

Excellent wear resistance under high load.

2. Smaller torque

It has the lowest friction coefficient among solid materials (friction coefficient is between 0.05-0.15), and the operating torque is much smaller than that of ordinary valves.

3. Excellent chemical properties

Inert to most chemicals and solvents, resistant to strong acids, alkalis, water and various organic solvents. Resistant to corrosion by strong oxidants.

4. Non-adhesive

It has the smallest surface tension among solid materials and does not adhere to any substance.

5. Advanced pinless connection

Advanced pinless connection technology ensures complete isolation of the medium and metal, improves product reliability, and makes butterfly valve maintenance simple and easy, saving time and labor.

6. Full plastic spray surface

The surface of the product is fully sprayed with plastic, which not only has a beautiful appearance, but also has excellent external anti-corrosion performance.

7. Good temperature resistance

PTFE can work continuously at a high temperature of 260 degrees Celsius and will not become brittle at minus 180 degrees.

496259398_1336482780985021_1442838864728761840_n

Product Performance Specification

Nominal diameter	Nominal pressure	Applicable temperature	Applicable media	Connection Type	Conection Standard
DN40-DN200 (1.5”~80”)	PN1.0-1.6MPa	-30~150 ℃	Strong acid, strong alkali, metal etchant, liquid oxygen, desulfurization liquid, sea water, drinking water, food, etc.	Wafer type (flangeless A type, U type, single flange type) Single clamp type (LT body), double flange	GB/DIN/BS/JIS/ASME/EN/ANSI/ISO

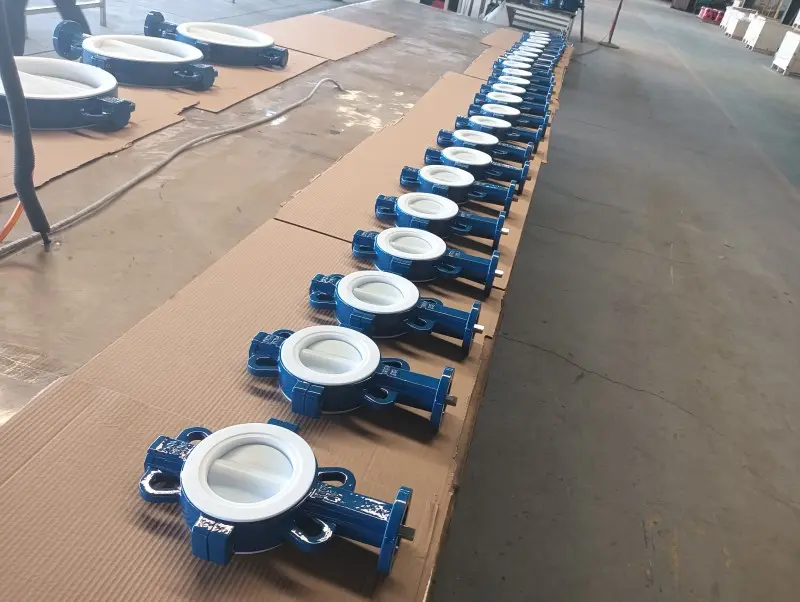

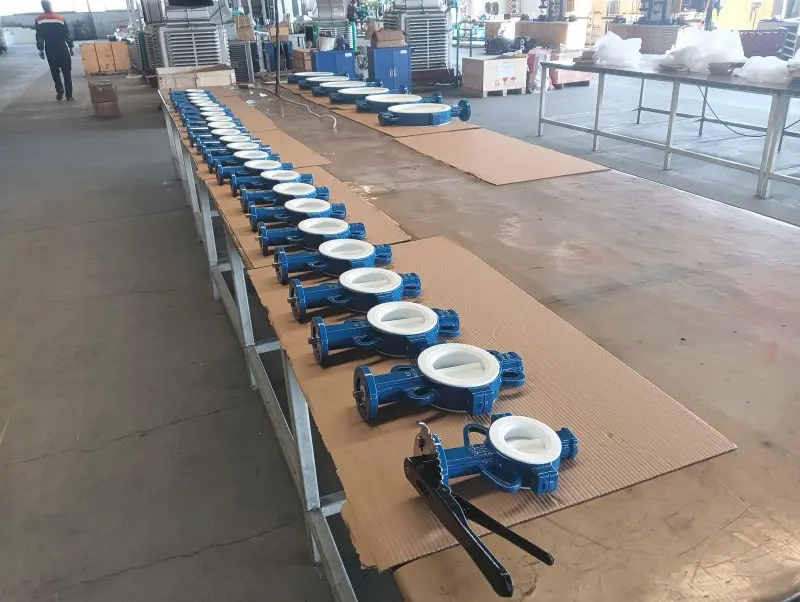

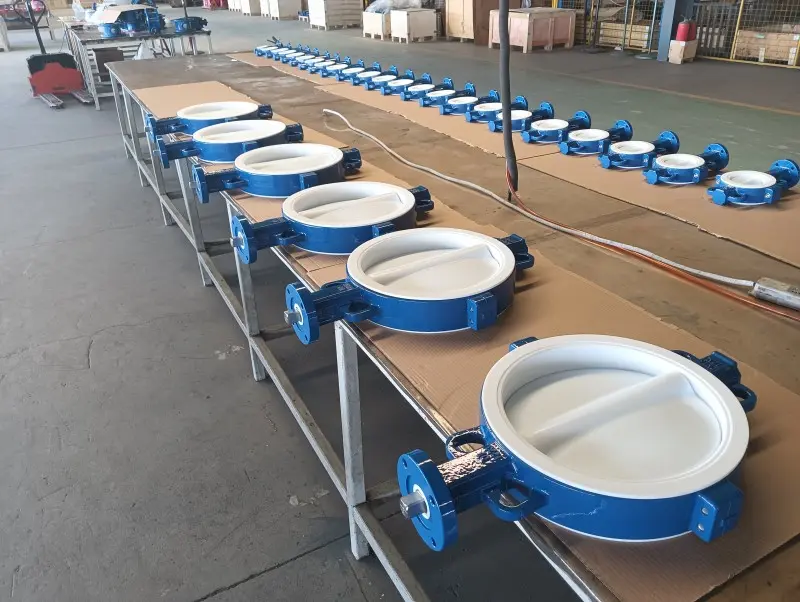

Product Showcase

Packaging

Frequently Asked Questions (FAQ)

What media are suitable for this butterfly valve?

The valve is applicable to strong acids, strong alkalis, metal etchants, liquid oxygen, desulfurization liquids, sea water, drinking water, food, and various corrosive or high-purity media.

What is the working temperature range?

The general applicable temperature range is -30℃ to 150℃. The PTFE material can continuously operate at temperatures up to 260℃ and retains its integrity down to -180℃ without embrittlement.

What are the benefits of the pinless connection design?

The advanced pinless connection technology ensures total isolation between the process medium and the metal components. This enhances product reliability, prevents leakage, and facilitates easy, labor-saving maintenance.

Why does this valve require a smaller operating torque?

It utilizes solid materials with an exceptionally low friction coefficient (between 0.05 and 0.15), which significantly reduces the operating torque compared to standard valves and enables smoother control.

Which connection types and standards are supported?

Available connection styles include Wafer type (flangeless A type, U type, single flange type), Single clamp type (LT body), and double flange. It conforms to international standards including GB, DIN, BS, JIS, ASME, EN, ANSI, and ISO.

How is external corrosion resistance achieved?

The entire exterior surface of the product is fully sprayed with plastic, which delivers exceptional corrosion protection against harsh external environments and provides a clean aesthetic finish.
