Wholesale PTFE Lined Butterfly Valve - Durable & Corrosion Resistant Manufacturers, Manufacturer

1 / 3

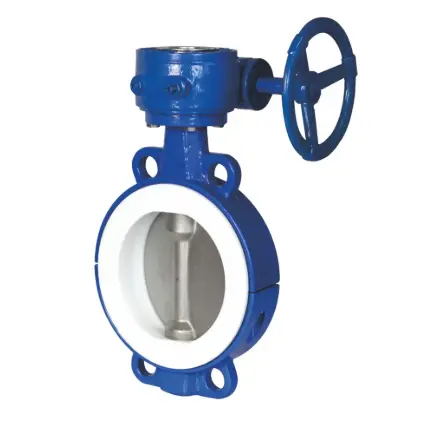

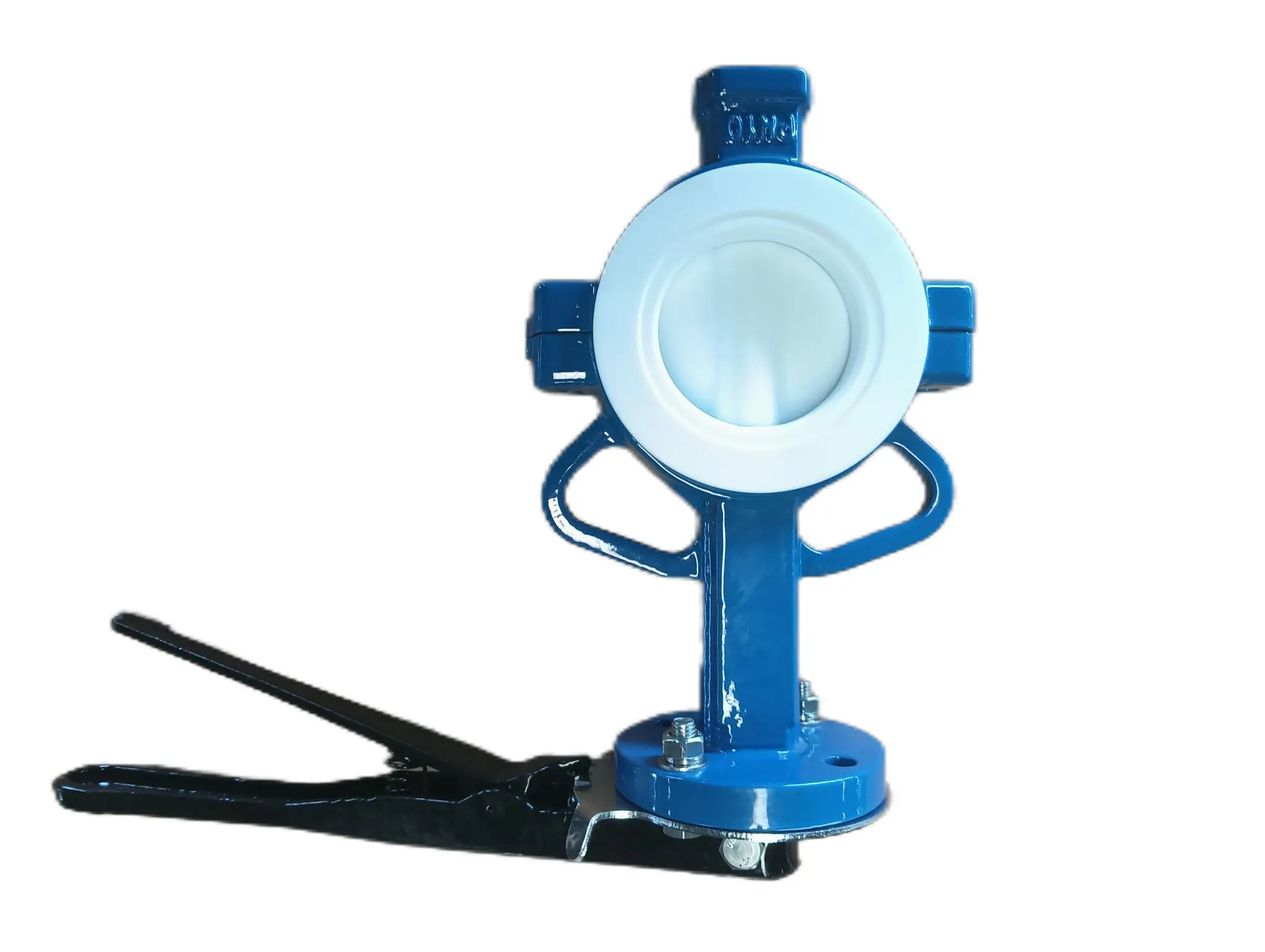

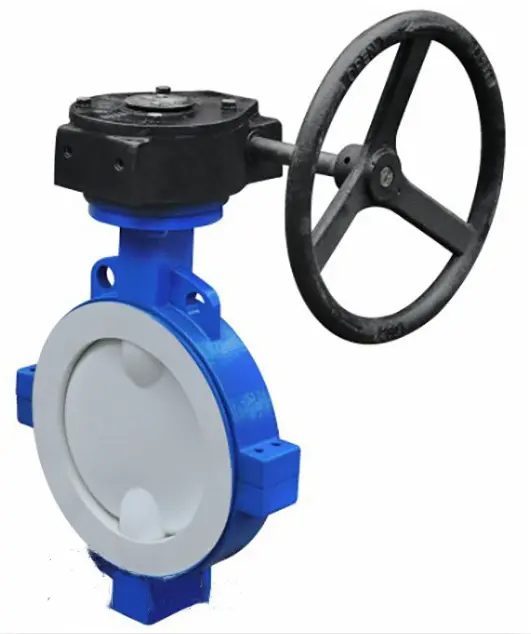

Wholesale PTFE Lined Butterfly Valve - Durable & Corrosion Resistant Manufacturers, Manufacturer

PTFE Lined Butterfly Valve uses a butterfly plate that rotates together with the valve stem as the opening and closing member to achieve the start, closing, and adjustment of the valve.

Send Inquiry

Product Description

Application

Good wear resistance: Excellent wear resistance under high load conditions.

Smaller torque: Features the lowest friction coefficient among solid materials (0.05-0.15), keeping the operating torque significantly lower than standard valves.

Excellent chemical properties: Inert to most chemicals and solvents; resistant to strong acids, alkalis, water, various organic solvents, and strong oxidants.

Non-adhesive: Boasts minimal surface tension among solid materials, preventing adhesion to any substance.

Advanced pinless connection technology: Ensures complete isolation between the medium and metal, enhancing product reliability and making butterfly valve maintenance effortless, saving both time and labor.

Protective coating: Fully spray-coated with plastic for a refined appearance and superior external anti-corrosion performance.

Good temperature resistance: PTFE components perform continuously up to 260°C and maintain structural resilience without brittleness at -180°C.

Product Performance Specification

Nominal Diameter	Nominal Pressure	Applicable Temperature	Applicable Media	Connection Type	Connection Standard
DN40-DN200 (1.5”~80”)	PN1.0-1.6MPa	-30~150 ℃	Strong acid, strong alkali, metal etchant, liquid oxygen, desulfurization liquid, sea water, drinking water, food, etc.	Wafer type (flangeless A type, U type, single flange type), Single clamp type (LT body), double flange	GB/DIN/BS/JIS/ASME/EN/ANSI/ISO

Product Showcase

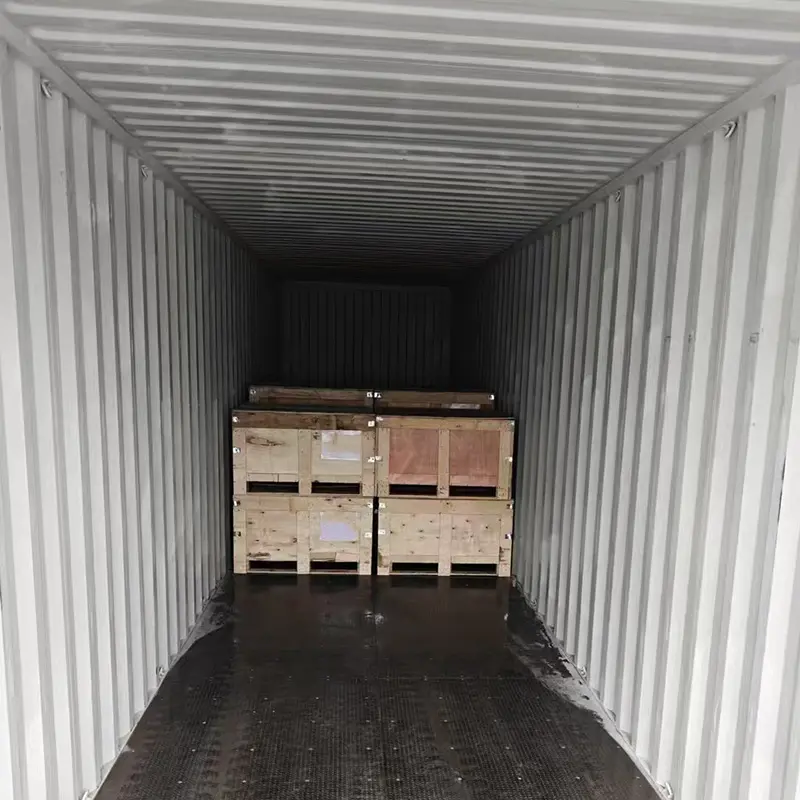

Packaging

Frequently Asked Questions

What types of media are suitable for this butterfly valve?

This butterfly valve is designed for challenging applications and is compatible with strong acids, strong alkalis, metal etchants, liquid oxygen, desulfurization liquids, sea water, drinking water, food products, and diverse organic solvents.

What are the operational temperature limits?

The standard applicable temperature range for normal operation is -30°C to 150°C. The PTFE material can operate continuously at temperatures up to 260°C and maintains integrity without embrittlement down to -180°C.

What connection types and flange standards are available?

It supports Wafer type (flangeless A type, U type, single flange type), Single clamp type (LT body), and double flange designs. It complies with major global standards including GB, DIN, BS, JIS, ASME, EN, ANSI, and ISO.

Why does this valve require significantly smaller operating torque?

The valve utilizes materials with the lowest friction coefficient available in solid substances (between 0.05 and 0.15), reducing mechanical resistance and requiring far less actuator or manual torque than ordinary valves.

What are the advantages of the pinless connection design?

The advanced pinless connection isolates the operating medium completely from metallic components, drastically reducing corrosion risks, increasing service life, and simplifying routine maintenance to save labor and time.

What is the available size and pressure rating range?

The nominal diameter spans from DN40 to DN200 (1.5” to 80”) with nominal working pressures rated from PN1.0 to 1.6MPa.
