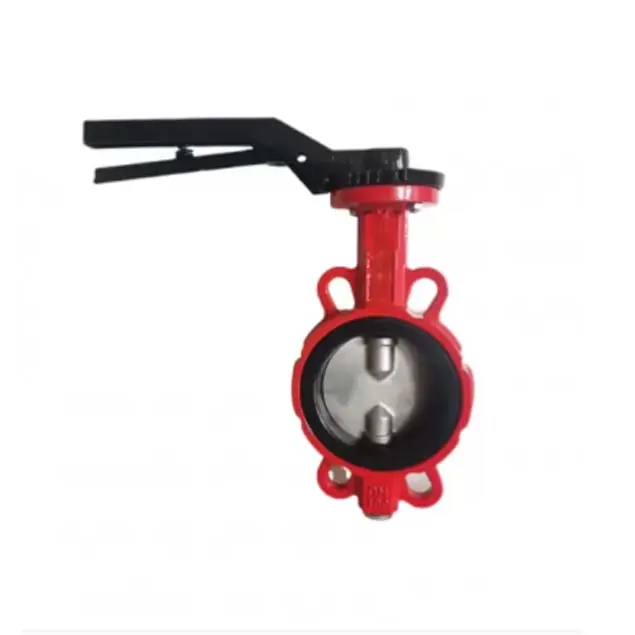

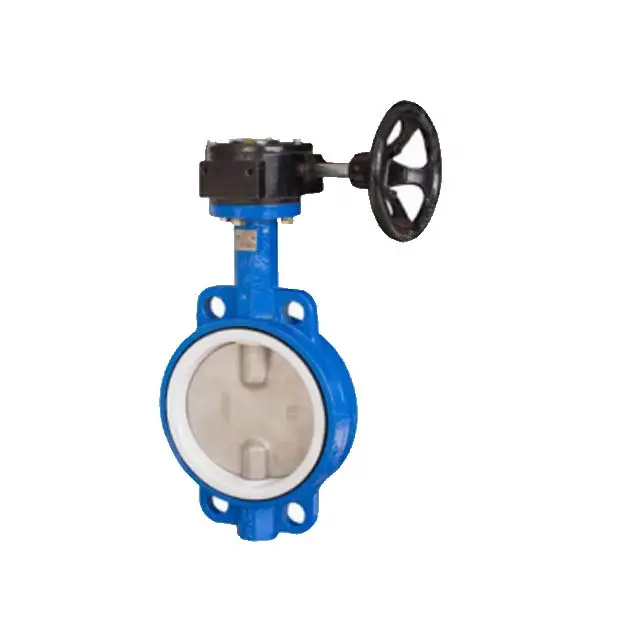

High-Quality Double Half Shaft Wafer Butterfly Valve Supplier, Manufacturer

1 / 2

High-Quality Double Half Shaft Wafer Butterfly Valve Supplier, Manufacturer

The disc of the Wafer Butterfly Valve is installed in the diameter direction of the pipe. In the butterfly valve body cylindrical channel, disc shaped butterfly plate around the axis of rotation, rotation Angle between 0°-90°,can play the role of flow regulation, when the butterfly plate rotation to 90°, the valve to reach the maximum opening. Wafer butterfly valve is with simple structure, small size, light weight, only by a few parts. And only need to rotate 90° can quickly open and close, simple operation, and the valve has good fluid control characteristics.

Technical Specifications:
Face to face: API609 / EN593 / EN558
Flange drilling: DIN2501/ ANSIB16.10 / EN1092
Working pressure: PN10/PN16
Upper flange connection: ISO5211

Send Inquiry

Product Description

Product Usage and Features

Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.

Simple and compact construction, quick 90 degrees on-off operation.

Minimized operating torque, energy saving.

Flow curve tending to straight line. Excellent regulation performance.

Long service life. Standing the test of tens of thousands opening/closing operations.

Bubble-tight sealing with no leakage under the pressure test.

Wide selection of materials, applicable for various medium.

Product Performance Specification

Item	Part Name	Material	Item	Part Name	Material
1	Body	GGG50	3	Shaft	Stainless Steel
2	Disc	Stainless Steel	4	O-ring	EPDM

Valve Material and Sizes

DN	H1 (mm)	H2 (mm)	L (mm)
40	139	68	33
50	161	80	43
65	175	89	46
80	181	95	46
100	200	114	52
125	213	127	56
150	226	139	56
200	260	175	60
250	292	203	68
300	337	242	78
350	368	267	78
400	400	298.6	105
450	422	318	114
500	480	355	127
600	562	444	154
700	623.9	505.1	165
800	646	499	190
900	672	576	203
1000	720	637	216
1100	800	701	230
1200	940	844	254

Packaging

Frequently Asked Questions

1. What materials are standard for the valve body and disc?

The standard configuration features a ductile iron GGG50 body, stainless steel disc, stainless steel shaft, and an EPDM O-ring for robust sealing and operational performance.

2. What size ranges are available for this valve?

The valve is manufactured in a comprehensive range of nominal diameters, starting from DN40 up to DN1200, accommodating diverse pipeline specifications.

3. How reliable is the valve sealing mechanism?

The valve provides bubble-tight sealing with zero leakage detected during pressure testing, ensuring high integrity under demanding operational conditions.

4. Can this valve be used for flow regulation?

Yes, with its linear-tending flow curve and low operating torque, it offers precise regulation performance alongside rapid 90-degree on-off operation.
