High-Quality Rubber Lined Pinless Butterfly Valve Supplier, Factories

1 / 1

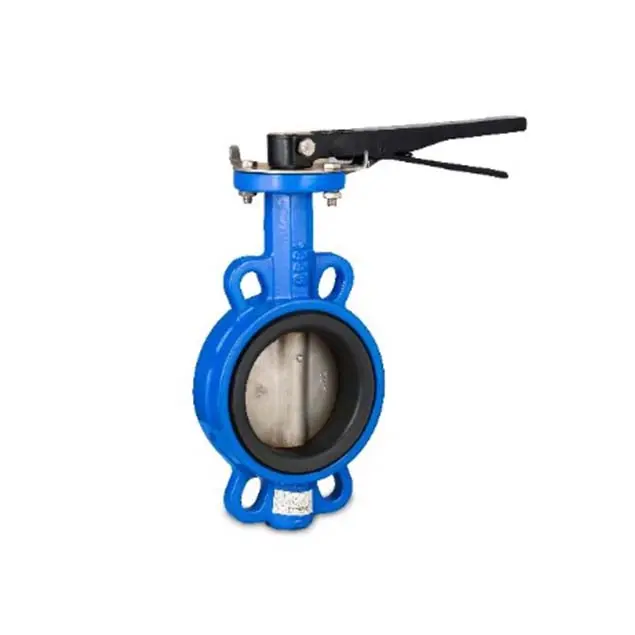

High-Quality Rubber Lined Pinless Butterfly Valve Supplier, Factories

Nylon PA-11, synthesized through the polycondensation of ω-amino undecanoic acid, demonstrates exceptional chemical resistance against common acids, alkalis, and oxidizing agents. Its low moisture absorption rate (<1.5% at saturation) ensures superior dimensional stability compared to other polyamides, while maintaining excellent wear resistance and oil-repellent properties. These characteristics make PA-11-coated butterfly valves particularly suitable for demanding fluid control applications across multiple industries. In environmental protection systems, they effectively manage water treatment processes, while their chemical inertness benefits power generation cooling circuits and metallurgical slurry transport. The valves' corrosion-resistant construction proves equally valuable in paper manufacturing effluents and petrochemical pipelines, offering reliable performance in both potable water distribution and industrial wastewater drainage systems under continuous operation conditions.

Send Inquiry

Product Description

Application & Advantages

Wear Resistance Nylon's wear resistance is 7 times that of copper, prolonging valve life by 3 times.

Low Operating Torque Self-lubricating, smooth, and wear-reducing characteristics significantly lower operating torque.

Chemical Properties Resistant to alkali, salt, and weak acids; inert to organic compounds across diverse media.

Energy Efficient Flow Smooth nylon coating reduces fluid friction resistance, enhancing energy savings.

Eco-Friendly & Safe Non-toxic, antibacterial, anti-mildew, environmentally compliant material.

Pinless Connection Isolates medium from metal, boosting reliability and simplifying valve maintenance.

External Protection Fully sprayed plastic surface offers clean aesthetics and high external anti-corrosion.

High Cost-Efficiency Nylon valve plates deliver solid economic performance, costing less than stainless steel.

Product Performance Specification

Nominal Diameter	Nominal Pressure	Travel Angle	Operating Temperature	Coating Thickness	Applicable Media	Connection Type	Connection Standard
DN40 - DN2000 (1.5” - 80”)	PN1.0 - 1.6MPa	0° - 90°	-20 - 60℃	Mini 200um	Seawater, fresh water, air, natural gas, alkali, salt, weak acid, organic compounds, etc.	Wafer type (flangeless A type, U type, single flange type), Single clamp type (LT body), double flange	GB / DIN / BS / JIS / ASME / EN / ANSI / ISO

Packaging & Delivery

Frequently Asked Questions

Q1 What makes the nylon-coated sealing surface superior to traditional materials?

Nylon provides a wear resistance 7 times higher than copper, effectively extending the overall valve operating lifespan by 3 times. Its self-lubricating surface lowers torque demands and reduces fluid friction during operation.

Q2 What media types can this butterfly valve handle?

It is suitable for a diverse range of media including seawater, fresh water, air, natural gas, alkalis, salts, weak acids, and various organic chemical compounds.

Q3 What are the operating limits for temperature and nominal pressure?

The valve is engineered for operating temperatures between -20°C and 60°C, and nominal working pressure ratings between PN1.0 and 1.6 MPa.

Q4 What size range and connection types are supported?

The nominal diameter spans from DN40 up to DN2000 (1.5" to 80"). Available configurations include wafer type (flangeless A type, U type, single flange), single clamp type (LT body), and double flange designs adhering to GB, DIN, BS, JIS, ASME, EN, ANSI, and ISO standards.

Q5 How does the pinless connection design optimize maintenance?

The advanced pinless design completely separates the internal medium from the structural metal components. This isolation minimizes degradation, significantly enhances operational reliability, and reduces labor and downtime during routine maintenance.

Q6 Is the valve safe and compliant for environmentally sensitive applications?

Yes, the nylon coating is entirely non-toxic, antibacterial, and anti-mildew. Along with low fluid resistance for energy efficiency, it delivers thorough external anti-corrosion protection via full plastic spray treatment.
