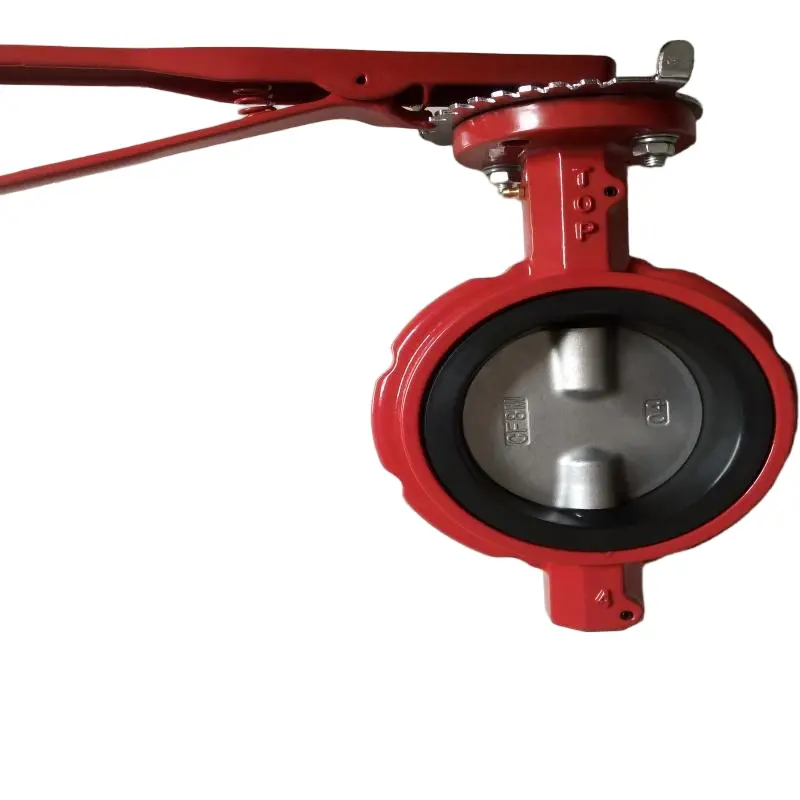

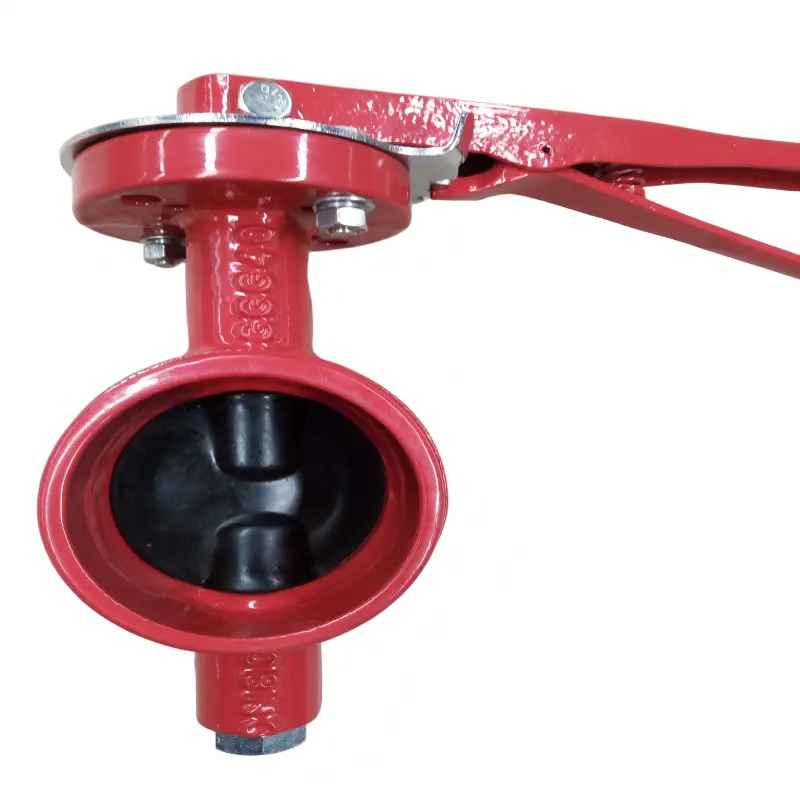

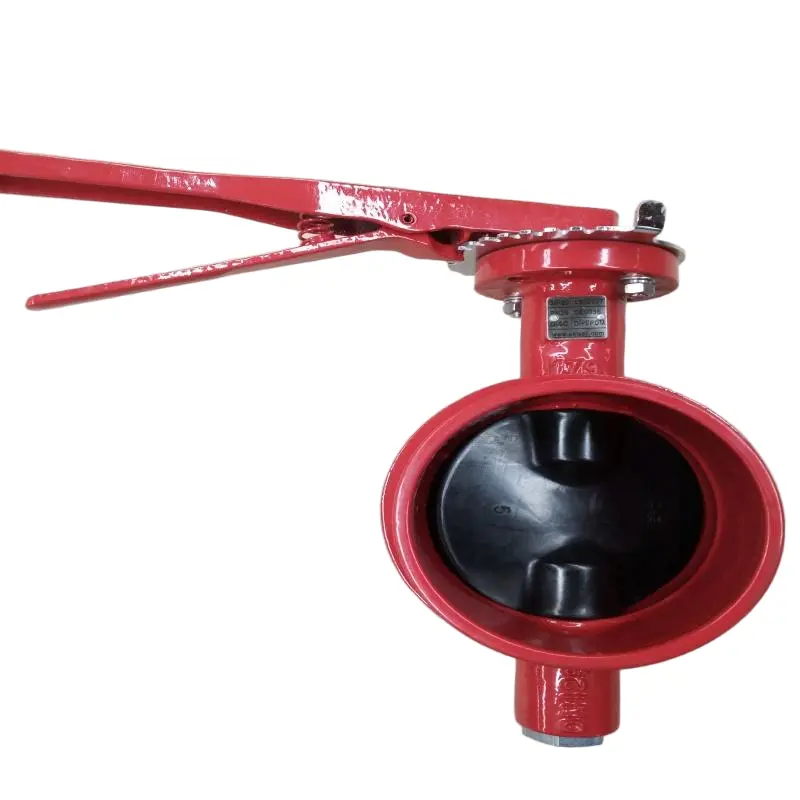

Wholesale Lugless Semi-Shaft Wafer Butterfly Valve - Durable & Reliable Manufacturer, Factory
Product Description

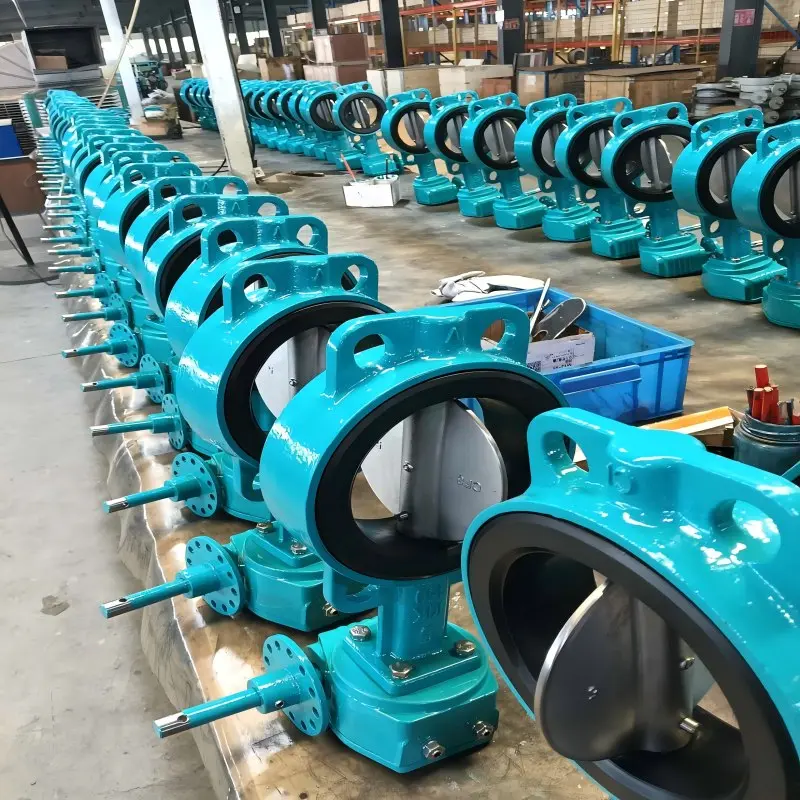

Wafer butterfly valves offer several significant advantages. Firstly, their compact and lightweight design makes them highly space-efficient, ideal for installations where space is limited. Unlike traditional valves, their wafer-style body can be easily sandwiched between two flanges, reducing installation complexity and saving both time and cost.
Design & Operational Overview
The lugless semi-shaft butterfly valve is a specialized quarter-turn valve engineered for efficient fluid control in industrial pipelines. Unlike traditional lug-style butterfly valves, it eliminates the external lugs on the valve body, featuring a compact, streamlined design that integrates seamlessly into pipeline systems. At its core, the valve incorporates a semi-shaft structure—where the shaft is only connected to one side of the disc, rather than running through the entire disc—reducing internal flow obstruction and minimizing pressure drop. The disc, typically made of corrosion-resistant materials like stainless steel or reinforced PTFE, rotates 90 degrees to regulate flow: a full open position allows unobstructed fluid passage, while a closed position creates a tight seal against the valve seat.
Key Advantages for Industrial Applications
Simplifies installation and saves space. Without external lugs, it requires fewer mounting components and fits into narrower pipeline layouts, reducing both installation time and material costs.
Enhances flow efficiency. By avoiding a full-through shaft, it eliminates potential flow restrictions and turbulence, maintaining consistent flow rates and lowering energy consumption for fluid transport.
The disc’s precise alignment with the seat—often enhanced by elastic or metal-to-metal sealing options—prevents leakage even under high pressure or temperature fluctuations, making it suitable for critical applications like chemical processing or water treatment.
Durability & Maintainability
Additionally, the lugless semi-shaft butterfly valve excels in maintainability. Its simplified structure means fewer internal parts, reducing the risk of component failure and easing maintenance tasks. When repairs are needed, the valve can be disassembled and serviced without removing the entire pipeline, minimizing downtime. It also boasts strong durability: the absence of external lugs reduces wear from environmental factors, while corrosion-resistant materials extend its lifespan in harsh operating conditions. Overall, this valve combines compact design, efficient performance, and low maintenance, making it a cost-effective solution for industries seeking reliable fluid control.
Frequently Asked Questions (FAQ)
A lugless semi-shaft butterfly valve eliminates external body lugs for a lighter footprint and uses a shaft that only attaches to one side of the disc rather than passing completely through it, which significantly reduces flow obstruction and pressure drop.
Because the stem does not cross entirely through the fluid path, the medium encounters less drag and reduced turbulence, allowing for higher flow coefficients and lower pumping power consumption.
The disc is commonly crafted from high-grade corrosion-resistant materials such as stainless steel or reinforced PTFE, ensuring dependable operation across demanding industrial media.
No. Thanks to its streamlined assembly and fewer internal components, the valve can often be inspected and serviced with minimal pipeline disturbance, reducing overall process downtime.
It is widely used in chemical processing, municipal water treatment, and standard industrial utility lines where compact dimensions, reliable bubble-tight sealing, and long-term durability are critical.
