What types of industrial valves does Tianjin Top Valve manufacture?

We manufacture resilient-seated butterfly valves (wafer, lug, double-flanged and grooved-end), check valves (dual plate, wafer lift, silent and ball type), resilient seat gate valves (rising stem, non-rising stem, buried and DIN pattern), globe valves for water, ammonia, vacuum and power-station service, as well as ball valves and eccentric plug valves.

Are your butterfly valves approved for drinking water?

Selected models, including 4020G, 4020L, 4325G and 4325L, are WRAS approved for potable water applications. Request our catalog to receive the approval reference and material declaration for each model.

Do you produce your own rubber seats and castings?

Yes. Our group operates Tianjin Dongfang Rubber Factory (since 1987) and Tianjin Donglian Valve Factory (since 1996), with an independent foundry, rubber compounding and moulding, a CNC machining center, assembly lines and a physical and chemical laboratory. This lets us control elastomer quality and casting integrity in-house.

Which quality and management certifications do you hold?

Our management system meets ISO 9001 quality management, ISO 14001 environmental management and ISO 45001 occupational health and safety standards, together with EU (CE) conformity for applicable products.

Can you supply valves to international flange and dimension standards?

Depending on the model, valves can be supplied with flange drilling to EN 1092 PN10/PN16, ASME/ANSI Class 125/150, BS and JIS, and our German-standard gate valves follow DIN face-to-face dimensions. Always confirm the exact standard on the model datasheet before ordering.

How can I get datasheets, drawings and a product catalog?

Request a catalog online or email victor@dytopvalve.com with your size, pressure rating, media and connection type. Our engineering team replies within 24 hours with datasheets, dimensional drawings and material specifications.

Where is your factory located and how are orders shipped?

Our factory is in the Wuxia Industrial Park, Dongli District, Tianjin, China, with fast road access to Tianjin Port. We export to customers in more than 50 countries using protective packaging and sea, air or rail freight.

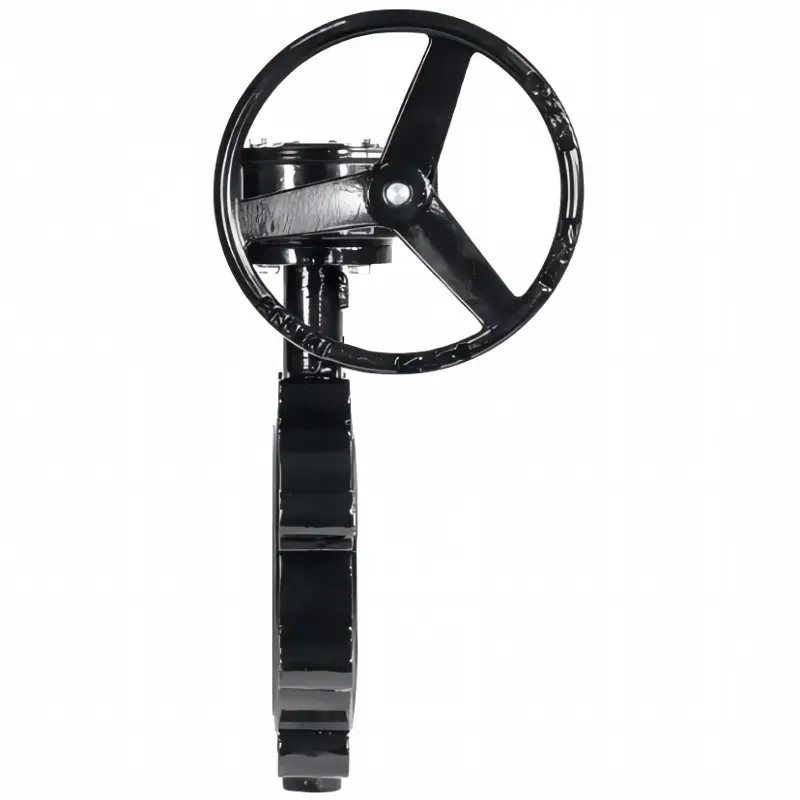

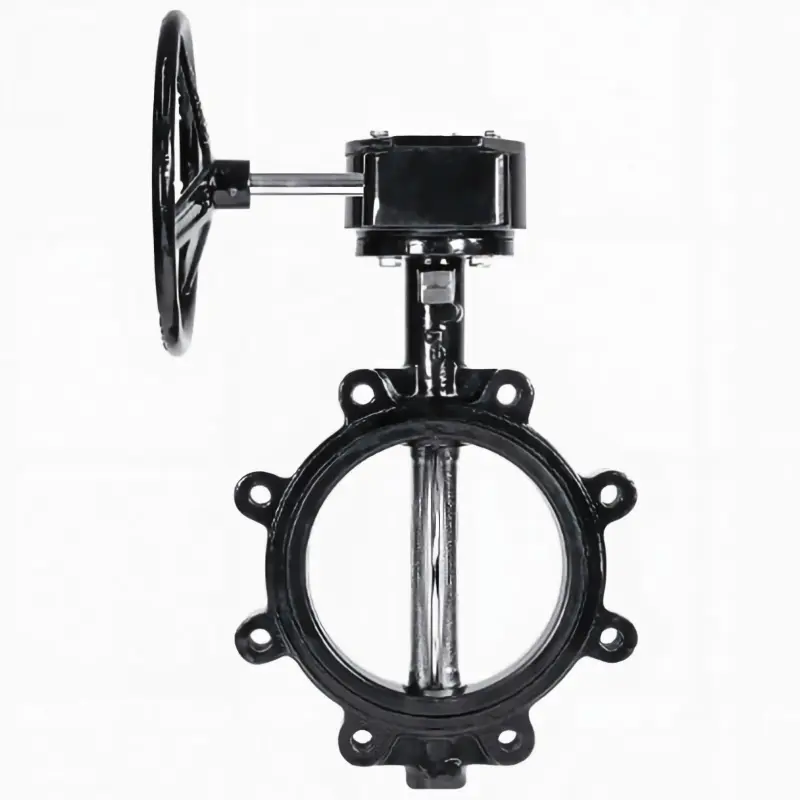

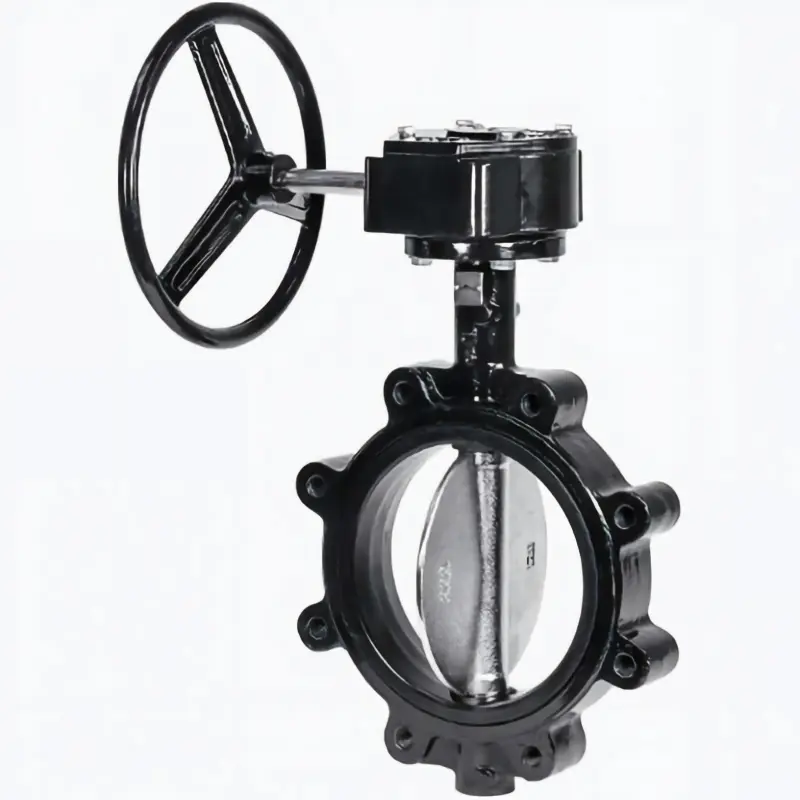

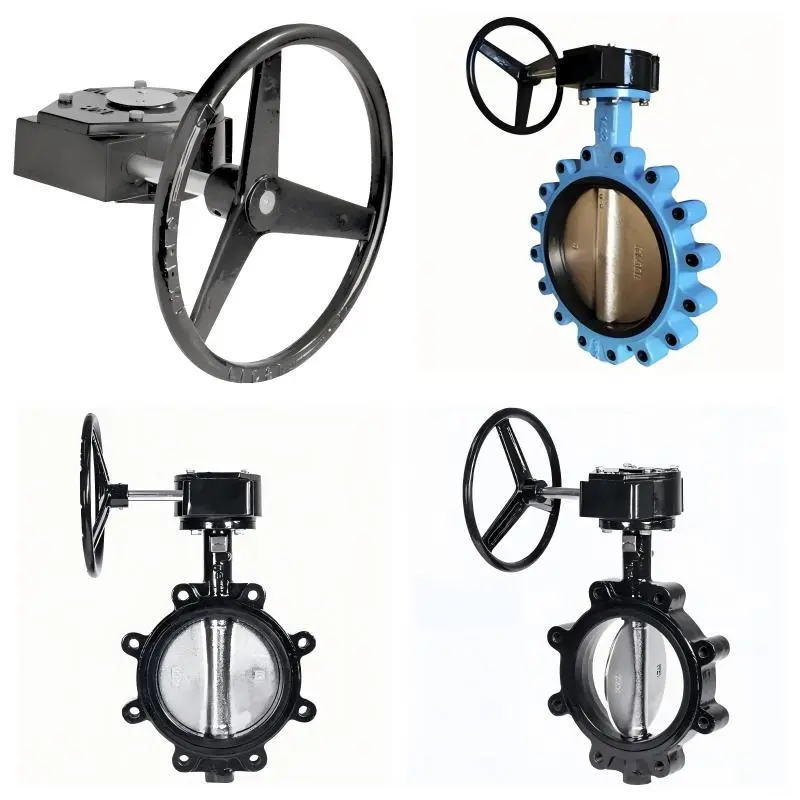

Wholesale WRAS Approved Lug Type Butterfly Valve 4325G Supplier, Factories

1 / 5

Wholesale WRAS Approved Lug Type Butterfly Valve 4325G Supplier, Factories

Range of wafer and lug butterfly valves incorporating blue epoxy coated ductile iron body, either a

stainless steel (CF8 or CF8M) or blue epoxy coated ductile iron disc and an EPDM seat.

DN40-300 lever and gear operated, DN350-600 gear operated.

Maximum working pressure 16.0 Bar.

Maximum operating temperature 85°C

Applications are valid for a period of 12 months from the date of which they are verified by the applicant

after which time confirmation will be required that the information provided is up to date

Send Inquiry

Product Description

Product Specifications & Overview

Materials of Construction

Body: Blue Epoxy Coated Ductile Iron
Disc: Stainless Steel (CF8 or CF8M) / Blue Epoxy Coated Ductile Iron
Seat: EPDM

Operating Limits

Max Working Pressure: 16.0 Bar
Max Operating Temperature: 85°C

Operation by Size

DN40 - DN300: Lever & Gear Operated
DN350 - DN600: Gear Operated

Model Series

4020L Wafer DN40-DN300 (Lever)

4325L Lug DN40-DN300 (Lever)

4020G Wafer DN350-DN600 (Gearbox)

4325G Lug DN350-DN600 (Gearbox)

Identification Marking

Tianjin Top Automation Equipment Co., Ltd., model, size, and PN on data plate mounted on body.

Technical Dimensions (DN50 - DN300)

Size	A	B	C2	D	E	F	KxK	Top Plate PCD	Plate HOLE N-Dia
DN50	140	70	105	41	90	30	11x11	70	4-θ9
DN65	152	76	117	44	90	30	11x11	70	4-θ9
DN80	159	91	130	44	90	30	11x11	70	4-θ9
DN100	178	102	162	51	90	30	14x14	70	4-θ9
DN125	191	119	187	54	90	30	14x14	70	4-θ9
DN150	203	133	216	54	90	30	17x17	70	4-θ11
DN200	241	170	271	64	125	30	17x17	102	4-θ11
DN250	273	210	330	64	125	30	22x22	102	4-θ11
DN300	308	243	376	76	125	30	22x22	102	4-θ11

Technical Dimensions (DN350 - DN600)

Size	A	B	C2	D	E	F	K	SxS/d	Top Plate Data (PCD)
DN350	413	267	45	150	80	525	470	22x22	125
DN400	451	309	45	175	90	585	525	27x27	140
DN450	467	318	45	175	109	650	585	27x27	140
DN500	525	350	45	175	127	720	650	36x36	140
DN600	607	410	45	210	154	850	770	36x36	165

Flange Standards & Large Dimensions (DN700 - DN1000)

PN10 Specifications
Size	A	B	C	L	фD	фK	Nxфd	4xM	фE	фF	a°	G	H	O	P	фR	Weight (Kg)
DN700	784	581	163	169	895	840	24xф31	/	741	695	15	355	146	146	228	400	361
DN800	832	655	188	195	1015	950	24xф34	/	847	794.7	15	355	146	146	228	400	444
DN900	974	745	203	211	1115	1050	24xф34	4xM30	943	864.7	12.857	377	170	170	243	450	660
DN1000	1054	803	216	224	1230	1160	24xф37	4xM33	1049	965.7	12.857	377	170	170	243	450	830
PN16 Specifications
Size	A	B	C	L	фD	фK	Nxфd	4xM	фE	фF	a°	G	H	O	P	фR	Weight (Kg)
DN700	784	581	163	169	910	840	20xф37	4xM33	741	695	15	355	146	146	228	400	396
DN800	926	655	188	195	1025	950	20xф40	4xM36	847	794.7	15	377	170	170	243	450	573
DN900	974	745	203	211	1125	1050	24xф40	4xM36	943	864.7	12.857	377	170	170	243	450	690
DN1000	1110	803	216	224	1255	1170	24xф43	4xM39	1049	965.7	12.857	476	180	250	302	450	1025

Product Video Demonstration

Frequently Asked Questions

What are the body, disc, and seat materials for these valves?

These valves feature a ductile iron body coated in protective blue epoxy. The disc is available in stainless steel (CF8 or CF8M) or blue epoxy coated ductile iron, paired with a reliable EPDM seat.

What are the maximum pressure and temperature limits?

The valves operate safely up to a maximum working pressure of 16.0 Bar and handle operating temperatures up to 85°C.

What operating methods are available across different sizes?

Valves sized DN40 through DN300 are available in lever or gear operated configurations. Sizes ranging from DN350 to DN600 and larger are gearbox operated.

What model designations represent the Wafer and Lug styles?

For DN40-DN300, 4020L designates the Wafer type and 4325L designates the Lug type (lever operated). For DN350-DN600, 4020G designates the Wafer type and 4325G designates the Lug type (gearbox operated).

What product information is marked on the valve?

Each valve body includes a data plate stamped with manufacturer details (Tianjin Top Automation Equipment Co., Ltd.), model number, nominal size, and PN rating.

Are large diameter valves available for PN10 and PN16 ratings?

Yes, dimensions and technical flange specifications are provided for both PN10 and PN16 pressure ratings from DN700 up to DN1000.
