Product Overview

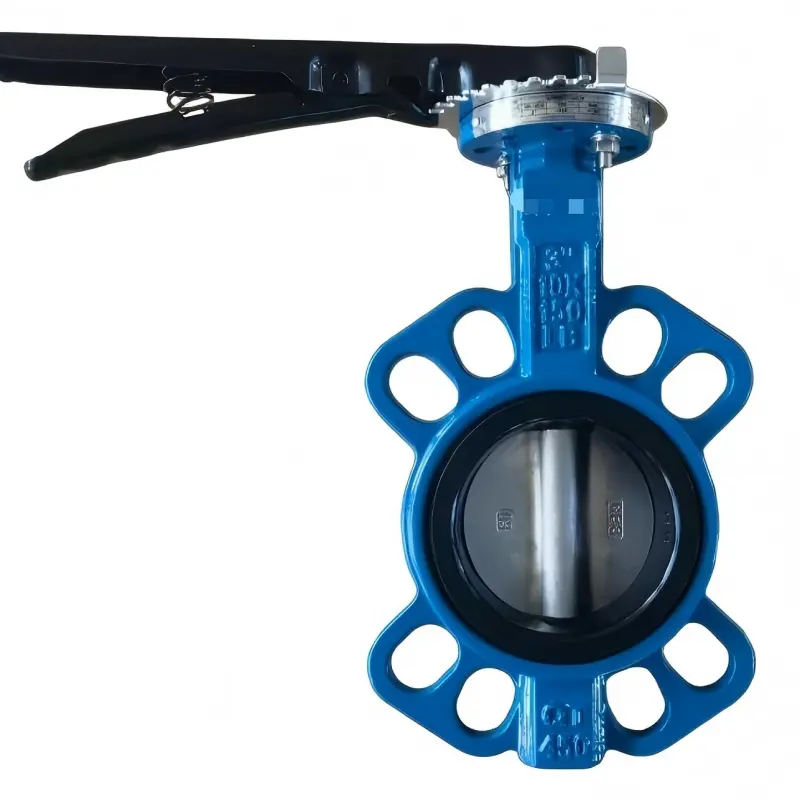

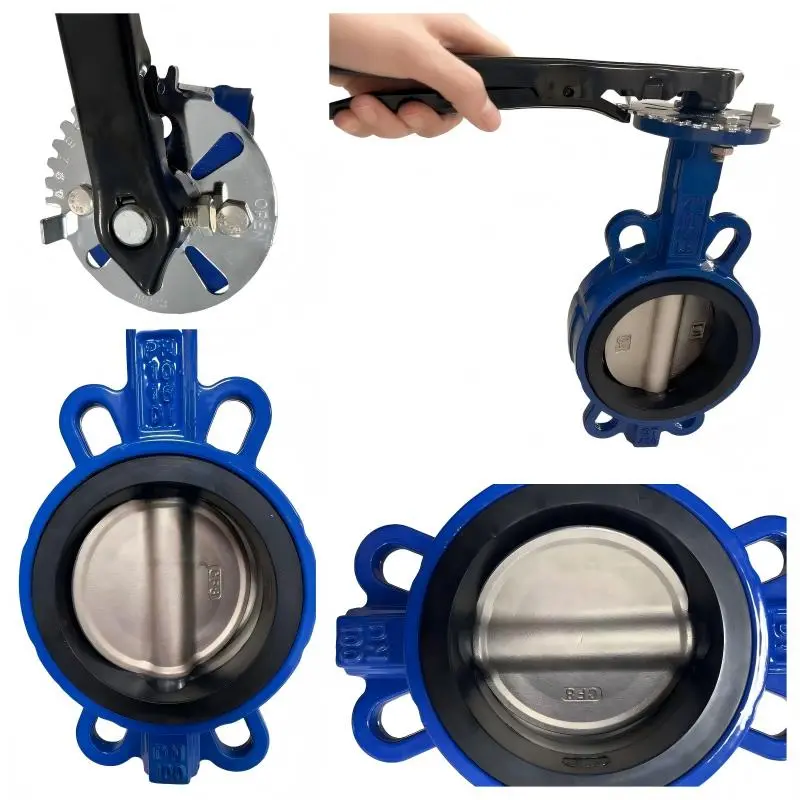

Range of wafer and lug butterfly valves incorporating blue epoxy coated ductile iron body, either a stainless steel (CF8 or CF8M) or blue epoxy coated ductile iron disc and an EPDM seat.
Working Pressure
Max. 16.0 Bar
Operating Temp
Max. 85°C
Body Material
Blue Epoxy Ductile Iron
Disc & Seat
CF8/CF8M/DI Disc, EPDM Seat
Identification Marking
Tianjin top automation equipment Co.,Ltd, model, size and PN on data plate on body.
Model (Lever Operated)

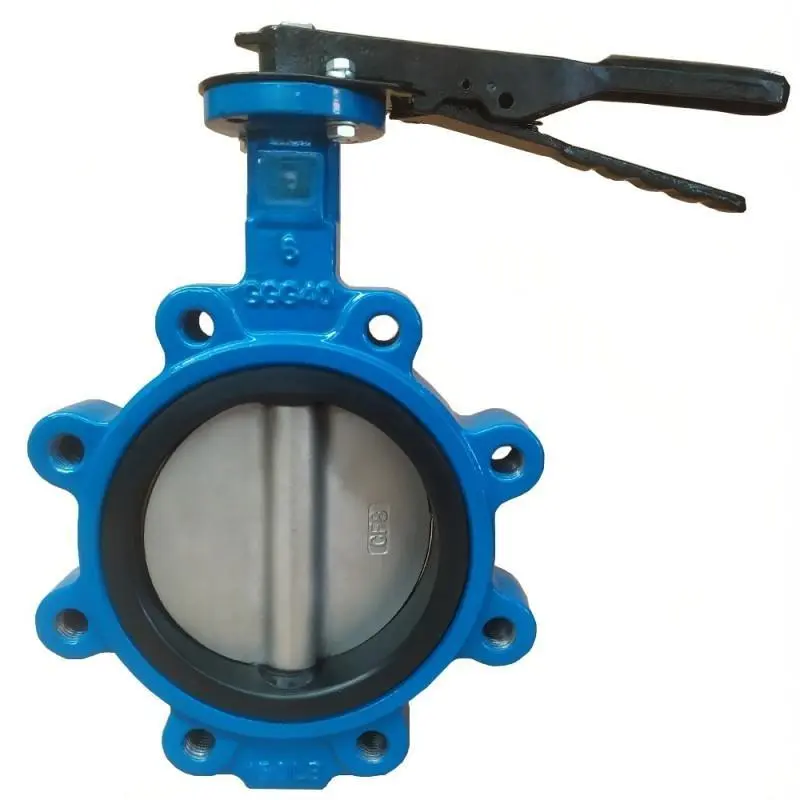

4020L (Wafer) & 4325L (Lug) DN40-DN300
Model (Gearbox Operated)
4020G (Wafer) & 4325G (Lug) DN350-DN600 (DN40-300 lever and gear operated, DN350-600 gear operated)
Size Range
DN40 to DN1000 (See models and dimension charts)
Dimensions & Technical Specifications
| DIMENSIONS in(mm) - DN50 to DN300 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C2 | D | E | F | KxK | Top PCD | Plate HOLE N-Dia |
| DN50 | 140 | 70 | 105 | 41 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN65 | 152 | 76 | 117 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN80 | 159 | 91 | 130 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN100 | 178 | 102 | 162 | 51 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN125 | 191 | 119 | 187 | 54 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN150 | 203 | 133 | 216 | 54 | 90 | 30 | 17x17 | 70 | 4-θ11 |
| DN200 | 241 | 170 | 271 | 64 | 125 | 30 | 17x17 | 102 | 4-θ11 |
| DN250 | 273 | 210 | 330 | 64 | 125 | 30 | 22x22 | 102 | 4-θ11 |
| DN300 | 308 | 243 | 376 | 76 | 125 | 30 | 22x22 | 102 | 4-θ11 |
| DIMENSIONS in(mm) - DN350 to DN600 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C2 | D | E | F | K | SxS/d | Top Plate Data PCD |
| DN350 | 413 | 267 | 45 | 150 | 80 | 525 | 470 | 22x22 | 125 |
| DN400 | 451 | 309 | 45 | 175 | 90 | 585 | 525 | 27x27 | 140 |
| DN450 | 467 | 318 | 45 | 175 | 109 | 650 | 585 | 27x27 | 140 |
| DN500 | 525 | 350 | 45 | 175 | 127 | 720 | 650 | 36x36 | 140 |
| DN600 | 607 | 410 | 45 | 210 | 154 | 850 | 770 | 36x36 | 165 |
Large Diameter Dimensions (PN10 / PN16)
| PN10 Specifications | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight(Kg) |
| DN700 | 784 | 581 | 163 | 169 | 895 | 840 | 24xф31 | / | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 361 |
| DN800 | 832 | 655 | 188 | 195 | 1015 | 950 | 24xф34 | / | 847 | 794.7 | 15 | 355 | 146 | 146 | 228 | 400 | 444 |
| DN900 | 974 | 745 | 203 | 211 | 1115 | 1050 | 24xф34 | 4xM30 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 660 |
| DN1000 | 1054 | 803 | 216 | 224 | 1230 | 1160 | 24xф37 | 4xM33 | 1049 | 965.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 830 |
| PN16 Specifications | |||||||||||||||||
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight(Kg) |
| DN700 | 784 | 581 | 163 | 169 | 910 | 840 | 20xф37 | 4xM33 | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 396 |
| DN800 | 926 | 655 | 188 | 195 | 1025 | 950 | 20xф40 | 4xM36 | 847 | 794.7 | 15 | 377 | 170 | 170 | 243 | 450 | 573 |
| DN900 | 974 | 745 | 203 | 211 | 1125 | 1050 | 24xф40 | 4xM36 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 690 |
| DN1000 | 1110 | 803 | 216 | 224 | 1255 | 1170 | 24xф43 | 4xM39 | 1049 | 965.7 | 12.857 | 476 | 180 | 250 | 302 | 450 | 1025 |
Product Demonstration Video
Frequently Asked Questions
What body and disc materials are available for this butterfly valve series?
The series features a blue epoxy coated ductile iron body, with disc options including stainless steel (CF8 or CF8M) or blue epoxy coated ductile iron, and is fitted with a resilient EPDM seat.
What are the maximum pressure and temperature limits?
The valves are engineered for a maximum working pressure of 16.0 Bar and a maximum operating temperature of up to 85°C.
What operation options are available across the size range?
Sizes DN40-DN300 are available with lever or gear operation (Model 4020L/4325L), while sizes DN350-DN600 and larger operate via gearbox (Model 4020G/4325G).
What body connection styles are provided?
The series provides both Wafer (Model 4020L / 4020G) and Lug (Model 4325L / 4325G) body connection designs across standard industrial dimensions.
What identification markings are included on the valve?
Identification is provided via a data plate on the valve body displaying Tianjin top automation equipment Co.,Ltd, model designation, size, and PN pressure rating.
