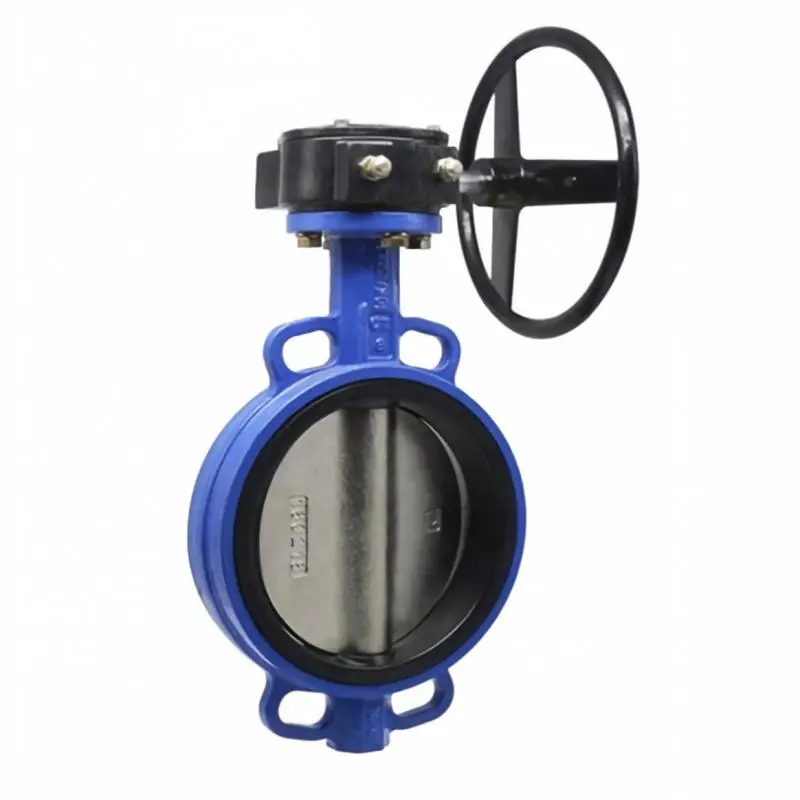

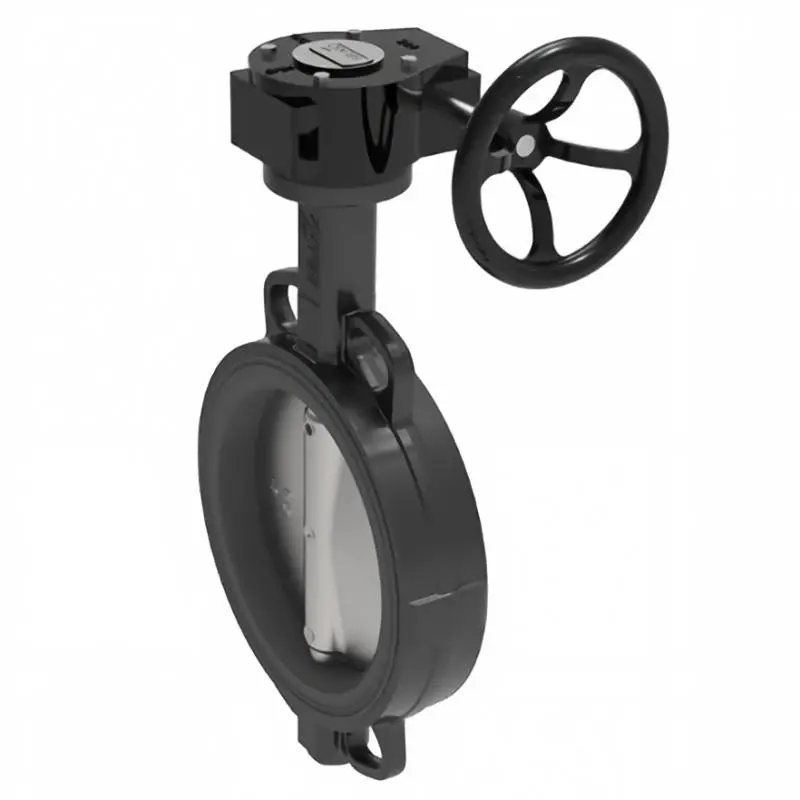

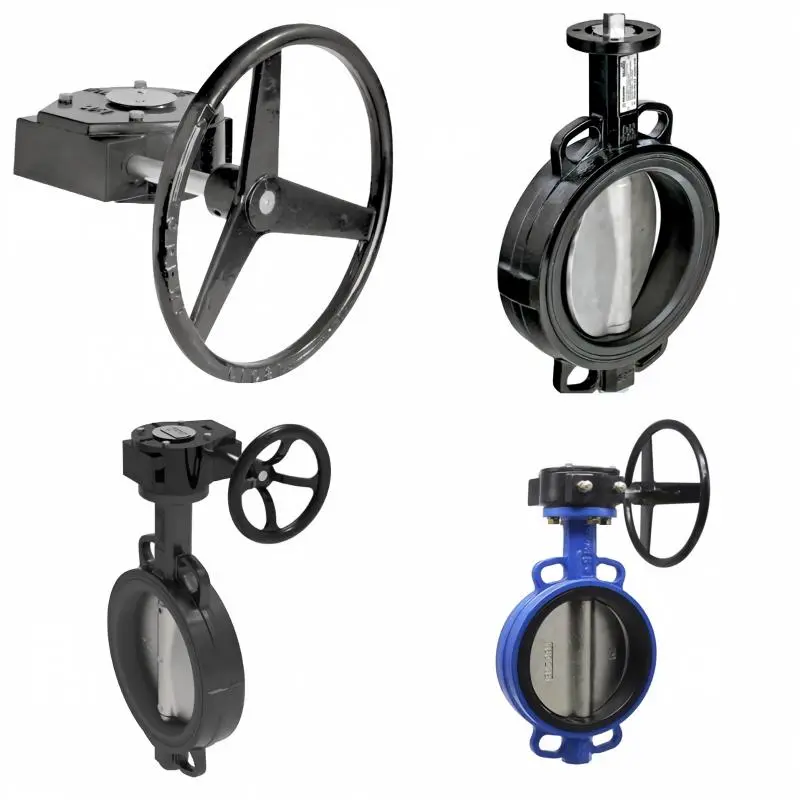

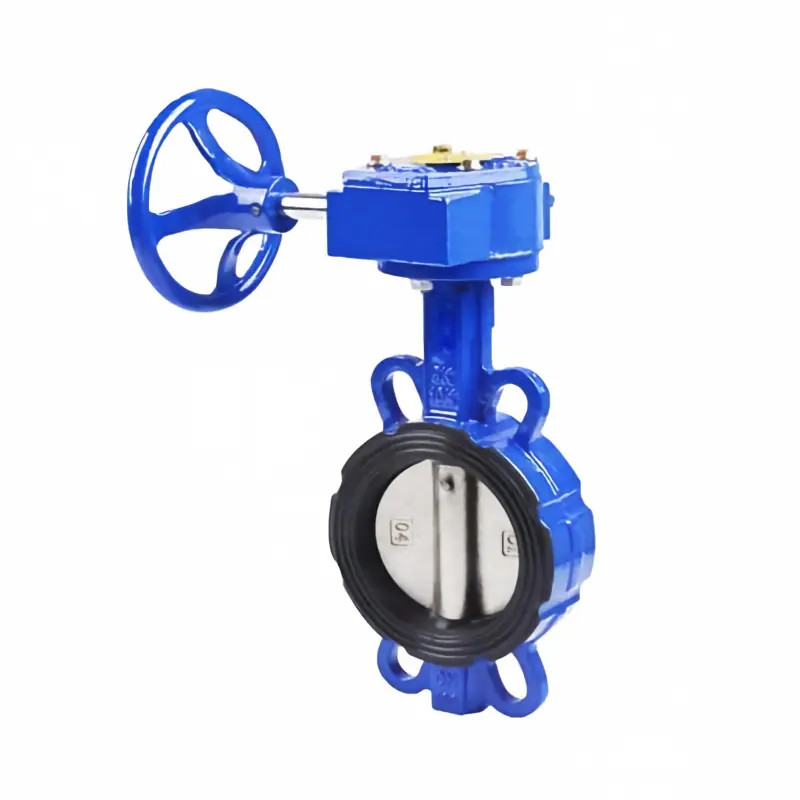

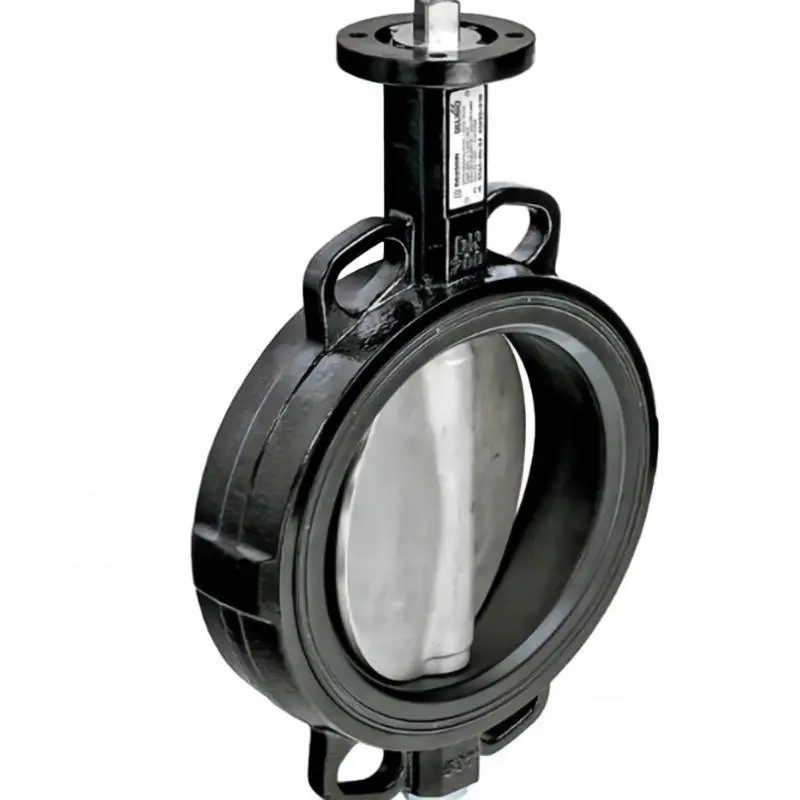

CE Certification WRAS Approved High-Performance Butterfly Valve 4020G Manufacturer, Factories
Product Description
Product Overview
Range of wafer and lug butterfly valves incorporating blue epoxy coated ductile iron body, either a stainless steel (CF8 or CF8M) or blue epoxy coated ductile iron disc and an EPDM seat.
Max Working Pressure
16.0 Bar
Max Operating Temp
85°C
Identification Marking
Tianjin top automation equipment Co.,Ltd, model, size and PN on data plate on body.
Available Models & Actuation
- 4020L (Wafer) & 4325L (Lug): DN40 - DN300 (Lever operated)
- 4020G (Wafer) & 4325G (Lug): DN350 - DN600 (Gearbox operated)
- Operation Range: DN40-300 lever and gear operated, DN350-600 gear operated. (Size: See models)

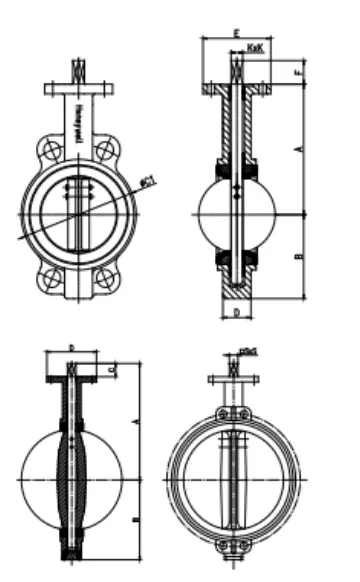

Dimensions (DN50 - DN300) in mm
| Size | A | B | C2 | D | E | F | KxK | Top Plate | |
|---|---|---|---|---|---|---|---|---|---|
| PCD | HOLE N-Dia | ||||||||
| DN50 | 140 | 70 | 105 | 41 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN65 | 152 | 76 | 117 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN80 | 159 | 91 | 130 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN100 | 178 | 102 | 162 | 51 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN125 | 191 | 119 | 187 | 54 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN150 | 203 | 133 | 216 | 54 | 90 | 30 | 17x17 | 70 | 4-θ11 |
| DN200 | 241 | 170 | 271 | 64 | 125 | 30 | 17x17 | 102 | 4-θ11 |
| DN250 | 273 | 210 | 330 | 64 | 125 | 30 | 22x22 | 102 | 4-θ11 |
| DN300 | 308 | 243 | 376 | 76 | 125 | 30 | 22x22 | 102 | 4-θ11 |
Dimensions (DN350 - DN600) in mm
| Size | A | B | C2 | D | E | F | K | SxS/d | Top Plate Data |
|---|---|---|---|---|---|---|---|---|---|
| PCD | |||||||||
| DN350 | 413 | 267 | 45 | 150 | 80 | 525 | 470 | 22x22 | 125 |
| DN400 | 451 | 309 | 45 | 175 | 90 | 585 | 525 | 27x27 | 140 |
| DN450 | 467 | 318 | 45 | 175 | 109 | 650 | 585 | 27x27 | 140 |
| DN500 | 525 | 350 | 45 | 175 | 127 | 720 | 650 | 36x36 | 140 |
| DN600 | 607 | 410 | 45 | 210 | 154 | 850 | 770 | 36x36 | 165 |
Large Diameter Dimensions & Flange Data (DN700 - DN1000)
| PN10 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight (Kg) |
| DN700 | 784 | 581 | 163 | 169 | 895 | 840 | 24xф31 | / | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 361 |
| DN800 | 832 | 655 | 188 | 195 | 1015 | 950 | 24xф34 | / | 847 | 794.7 | 15 | 355 | 146 | 146 | 228 | 400 | 444 |
| DN900 | 974 | 745 | 203 | 211 | 1115 | 1050 | 24xф34 | 4xM30 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 660 |
| DN1000 | 1054 | 803 | 216 | 224 | 1230 | 1160 | 24xф37 | 4xM33 | 1049 | 965.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 830 |
| PN16 | |||||||||||||||||
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight (Kg) |
| DN700 | 784 | 581 | 163 | 169 | 910 | 840 | 20xф37 | 4xM33 | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 396 |
| DN800 | 926 | 655 | 188 | 195 | 1025 | 950 | 20xф40 | 4xM36 | 847 | 794.7 | 15 | 377 | 170 | 170 | 243 | 450 | 573 |
| DN900 | 974 | 745 | 203 | 211 | 1125 | 1050 | 24xф40 | 4xM36 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 690 |
| DN1000 | 1110 | 803 | 216 | 224 | 1255 | 1170 | 24xф43 | 4xM39 | 1049 | 965.7 | 12.857 | 476 | 180 | 250 | 302 | 450 | 1025 |

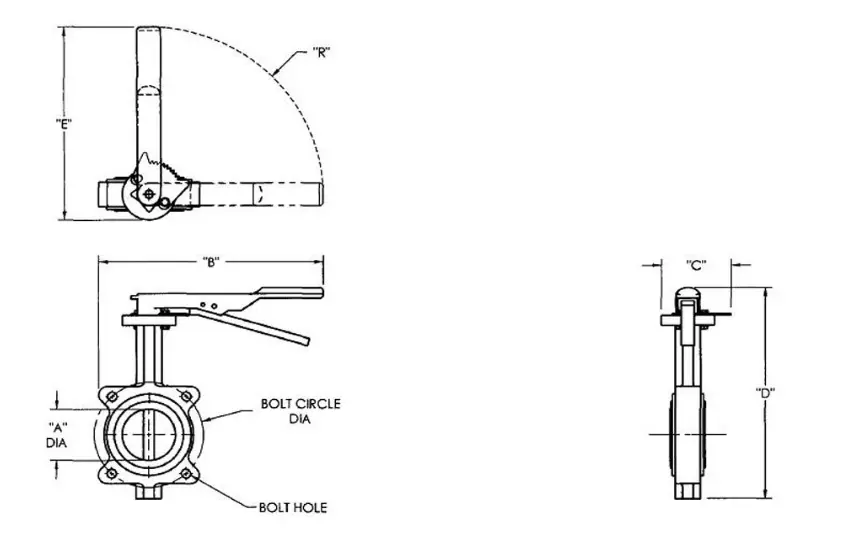

Technical Diagrams & Drawings
Demonstration Video
Frequently Asked Questions
What body and trim materials are used in these butterfly valves?
The series incorporates a blue epoxy coated ductile iron body, paired with an EPDM seat and a disc made either from stainless steel (CF8 / CF8M) or blue epoxy coated ductile iron.
What are the maximum pressure and temperature limits?
These valves are engineered to withstand a maximum working pressure of 16.0 Bar and a maximum operating temperature of 85°C.
What operation options are available across the size range?
Valves ranging from DN40 to DN300 support lever and gear operation. Larger sizes from DN350 to DN600 and beyond are operated by a manual gearbox.
What are the differences between 4020 and 4325 valve models?
Model 4020 represents the Wafer type connection (4020L for lever, 4020G for gearbox), whereas Model 4325 represents the Lug type connection (4325L for lever, 4325G for gearbox).
How are the valves marked for identification on site?
Each unit features an identification data plate on the valve body displaying Tianjin top automation equipment Co.,Ltd, model, size, and PN rating.
Are large sizes like DN700 to DN1000 available in both PN10 and PN16?
Yes, dimensional specifications and flange drilling patterns are available for both PN10 and PN16 pressure standards from DN700 up to DN1000.
