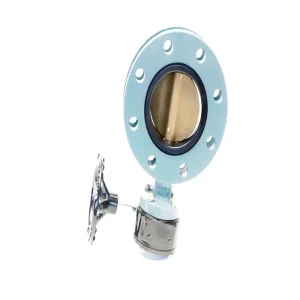

Wholesale CE/ISO/DIN/BS High Pressure Metal Seal Hard Seal Butterfly Valve Manufacturers, Manufacturer
View Specifications

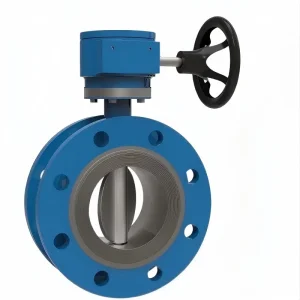

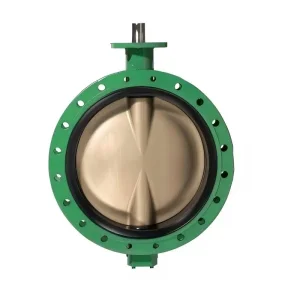

High-Quality Water Used Flanged Butterfly Valve - Durable & Efficient Manufacturer, Factories
View Specifications
High-Quality Flange Type Butterfly Valve - Durable and Efficient Flow Control Supplier, Manufacturer
View Specifications
Wholesale PTFE Lined Butterfly Valve - Durable & Corrosion Resistant Manufacturers, Manufacturer
View Specifications
CE Certification German Standard Elastic Seat Gate Valve Manufacturers, Manufacturer
View SpecificationsWhy Halar® (ECTFE) Lined Butterfly Valves Redefine Fluid Isolation
In corrosive chemical processing, mineral extraction, and high-purity microelectronics, conventional fluoropolymer linings (such as standard PTFE, PFA, and FEP) often encounter structural limitations under mechanical shear, permeation of small molecular halogens, and thermal cycling.
Exceptional Permeation Barrier
Halar® ECTFE (ethylene chlorotrifluoroethylene) possesses an alternating copolymer crystalline structure that yields up to 10 to 100 times lower permeation rates against wet chlorine, hydrochloric acid (HCl), hydrofluoric acid (HF), and sulfuric acid compared to traditional sintered PTFE.
Superior Wear & Impact Resistance
Boasting a Rockwell hardness of R93 and a tensile modulus superior to PFA and PTFE, ECTFE avoids micro-grooving and erosion during throttling service with abrasive slurries, crystalline suspensions, or high-velocity chemical media, dramatically extending MTBF.
Electrostatic Powder Pin-Hole-Free Purity
Applying Halar via multi-layer electrostatic fluidized bed or powder spraying builds uniform, seamless thicknesses from 600 µm to 1500 µm across complex disc profiles and bore geometries, verified via non-destructive high-voltage 14 kV spark testing.
Full Vacuum Resilience
Unlike standard loose PTFE sleeve liners that collapse or delaminate under negative pressure, chemically bonded or mechanically dovetailed Halar ECTFE coatings exhibit tenacious mechanical adhesion to ductile iron and stainless steel cores, resisting full vacuum (0.1 bar abs).
E-E-A-T Technical Engineering Insight: Fluoropolymer Permeation Comparison
In a recent benchmark study conducted in our chemical testing laboratory, Halar ECTFE demonstrated a permeation coefficient for chlorine gas (Cl₂) of 0.15 × 10⁻¹⁰ cm³·cm/(cm²·s·cmHg), in stark contrast to PTFE at 4.2 × 10⁻¹⁰. For process plant engineers handling wet chlorine gas or chlor-alkali electrolysis streams, this difference prevents subsurface body casting oxidation and eliminates catastrophic stem-sealing blowouts.
| Performance Characteristic | Halar® ECTFE Lined | PTFE Lined | PFA Lined | Hard Rubber / Ebonite |
|---|---|---|---|---|
| Operating Temperature | -60°C to +150°C (-76°F to 302°F) | -40°C to +180°C | -40°C to +200°C | -10°C to +85°C |
| Permeation Resistance (HCl / Cl₂) | Ultra-Superior (Grade A) | Moderate (Susceptible to Micro-pores) | High | Low (Rapid degradation) |
| Tensile Strength & Abrasion | 35 MPa (High mechanical toughness) | 14 - 20 MPa (Cold flow prone) | 25 MPa | 15 MPa (Cracks under flex) |
| Surface Roughness (Ra) | < 0.25 µm (Mirror smooth) | > 0.8 µm | < 0.4 µm | > 2.5 µm |
| Vacuum Suitability | Full Vacuum (Chemically bonded) | Requires thick wall / liner cage | Good if dovetailed | Poor over 60°C |
| Applicable CE Directives | PED 2014/68/EU Module H / Cat III | PED 2014/68/EU Module A/H | PED 2014/68/EU Module H | PED Module A |
Overcoming Procurement Pain Points: What Global EPCs Demand
Purchasing directors and lead instrumentation engineers from Tier-1 EPC firms, chemical conglomerates, and desalination utilities face repeated operational risks when selecting lined valves from fragmented supply chains.
Eradicating Delamination & Blistering
The Risk: Low-cost lining shops spray fluoropolymers without automated substrate shot blasting or proprietary primers, causing coating disbondment during thermal shifts.
Our Solution: Automated SA 2.5 robotic blasting followed by induction pre-heating and computerized thermoset sintering guarantees a 12 MPa mechanical peel strength.
Fugitive Emissions & Environmental Safety
The Risk: Hazardous volatile leaks at the valve shaft violating TA-Luft and ISO 15848-1 environmental guidelines.
Our Solution: Dual atmospheric dynamic energization using PTFE/ECTFE live-loaded chevron packings, guaranteed to helium leakage class AH (<10⁻⁶ mg·s⁻¹·m⁻¹).
Full CE, PED & Material Traceability
The Risk: Non-conforming documentation stalling project commissioning with notified bodies in Europe.
Our Solution: Direct CE marking under Pressure Equipment Directive (PED) 2014/68/EU Module H, accompanied by EN 10204 3.1 chemical/mechanical mill test certificates for every heat code.
Total Cost of Ownership (TCO) Optimization
The Risk: Buying low-initial-cost valves leads to quarterly maintenance shutdowns costing upwards of $50,000 per hour.
Our Solution: Extended design life of 100,000+ full cycles under full delta-P rating, reducing lifecycle replacement frequency by 400% compared to conventional rubber-seated alternatives.
Macro-Industry Deployment: Tailored Fluid Architecture
Our CE-certified Halar lined butterfly valves serve as critical isolation and throttling nodes across demanding processing sectors worldwide.
Semiconductor & Ultra-Pure Chemical Processing
Fabrication plants require parts-per-trillion ionic cleanliness. Halar’s mirror-smooth fluorinated surface prevents metal ion leaching into ultra-pure hydrofluoric (UP-HF), nitric (HNO₃), and ammonium hydroxide mixtures used in wafer etching circuits.
Chlor-Alkali & Base Chemical Synthesis
Handling wet chlorine gas, sodium hypochlorite (NaOCl), and concentrated sodium hydroxide (NaOH) demands absolute resistance to stress crack corrosion. Halar lined discs eliminate the need for expensive exotic alloys like Titanium Grade 2 or Hastelloy C-276.
Marine Exhaust Gas Cleaning (EGCS / Scrubbers)
IMO MARPOL Annex VI regulations enforce SOx scrubbers aboard sea vessels. Hot acidic washwater combined with aggressive marine chlorides dissolves standard stainless steels; Halar lined butterfly valves provide continuous operational longevity in open and closed loop systems.
Hydrometallurgy & Battery Lithium Extraction
Processing acidic leach solutions (nickel, cobalt, lithium brine) at elevated pressures and temperatures rapidly erodes standard elastomeric butterfly valves. The toughness of Halar ECTFE resists abrasive ore slurries and acid corrosion simultaneously.
Stringent Factory QA: From In-House Ingot Pour to Spark Inspection
Reliability starts at our direct source. Our vertically integrated production model unifies metallurgical casting, precision CNC machining, elastomer formulation, and fluoropolymer lining under one ISO 9001, ISO 14001, and ISO 45001 certified roof.
1. Spectrographic Metallurgy Control
Ductile iron (EN-GJS-400-15 / ASTM A536 65-45-12), WCB carbon steel, and CF8M stainless steel melts are verified via optical emission spectrometers to guarantee tensile limits, nodularity > 85%, and complete absence of blowholes prior to fluoropolymer bonding.
2. High-Voltage Spark Non-Destructive Testing
Every single square millimeter of our Halar lined butterfly valve bodies and discs is subjected to 14 kV to 20 kV direct-current spark inspection per ASTM D5162 / DIN EN 14879-1. Zero dielectric breakdown is the absolute standard before dispatch.
3. Hydrostatic Shell & Bubble-Tight Seat Testing
100% of manufactured valves undergo pressure testing in accordance with EN 12266-1 Rate A and API 598. Shell tests at 1.5× PN rating and bidirectional seat tests at 1.1× PN ensure absolute zero visible leakage across thousands of continuous operational cycles.
4. Multi-Standard Mechanical Interfacing
Our valve bodies are cast with universal flange patterns conforming to EN 1092-1 PN10/PN16, ASME B16.5 Class 150, JIS B2238 10K, and AS 2129 Table E, equipped with ISO 5211 direct-mount actuator flanges for seamless automation.
Technical Roadmap: Smart Corrosion Analytics & Advanced Actuation
Industrial IoT and digital twin process modeling are transforming critical valve infrastructure. We are engineering the next era of predictive flow control.
Nano-Particle Enhanced Fluoropolymer Hybrids
R&D is underway incorporating graphene oxide and ceramic micro-whiskers into the ECTFE polymer matrix. This advances thermal dissipation, reduces static charge buildup in explosive ATEX zones, and increases continuous thermal ceiling limits up to 175°C.
Integrated Acoustic & Micro-Torque Telemetry
Our smart actuation prototypes integrate non-invasive acoustic emission sensors and dynamic strain gauges inside the ISO 5211 mounting bracket, alerting distributed control systems (DCS) to elastomer hardening or seat crystallization long before leaks occur.
Zero-Carbon Casting & Clean Circular Polymeric Reclamation
Aligning with EU ESG directives, our modern induction foundry runs 100% closed-loop sand reclamation with 40% reduced carbon intensity. Off-spec pure ECTFE overspray is recovered and recycled into structural composite ancillary pipe components.
Frequently Asked Questions on CE Certified Halar Lined Butterfly Valves
Technical clarity for procurement directors, pipeline design engineers, and maintenance managers.
What makes Halar® (ECTFE) lined butterfly valves superior to PTFE or PFA lined valves in chlorine and acid duty?
How does CE certification under the Pressure Equipment Directive (PED 2014/68/EU) apply to your lined valves?
Can your Halar lined butterfly valves operate in full vacuum without liner collapse?
What quality control and spark testing methods are implemented prior to shipping?
What are the actuation options and compatibility for automation with DCS systems?
Comprehensive Heavy-Duty Flow Control Product Range
Complete your balance of plant systems with our high-pressure metal seal, marine grade, grooved end, and low-torque valve families manufactured to exacting international standards.

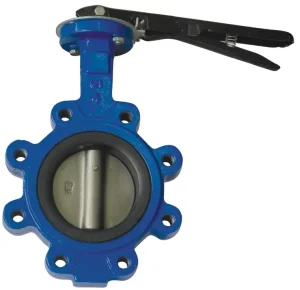

High-Quality Lug type manual operated butterfly valve Manufacturers, Factory
View Specifications
High-Quality Marine Centric Lug type manual operated butterfly valve Manufacturers, Factory
View Specifications

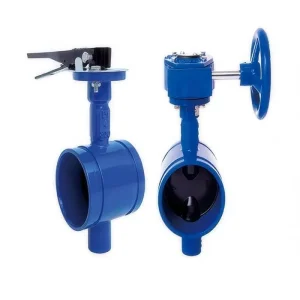

High-Quality Grooved End Butterfly Valve - Durable & Reliable Flow Control Suppliers, Supplier
View Specifications
High-Quality PTFE Lined Pinless Butterfly Valve Supplier, Factories
View Specifications

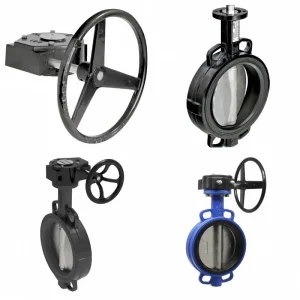

CE Certification WRAS Approved High-Performance Butterfly Valve 4020G Manufacturer, Factories
View Specifications
Wholesale Straight-Through Ammonia Globe Valve Manufacturers, Factory
View Specifications

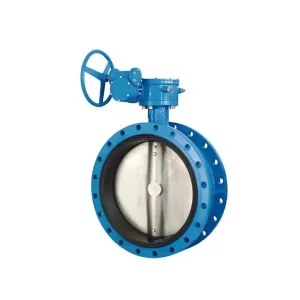

Wholesale Low - Torque Flange Type Butterfly Valve Supplier, Factory
