ISO 9001 & CE Certified Valve Foundry

Wholesale Pneumatic Slide Gate Suppliers & Factories

Direct Factory Sourcing for High-Duty Bulk Solids Isolation, Pneumatic Actuation Architecture, and Precision Knife Orifice Control Engineered for Zero-Leakage Processing Across 50+ Global Markets.

Direct Foundry Lineup

Precision Flow Control & Industrial Actuation Catalog

Explore our precision-machined flow control and shut-off units. Every component is cast, vulcanized, and hydrostatically inspected under rigid vertical quality management systems.

High-Quality Grooved Type Manual Butterfly Valve

High-Quality Grooved Type Manual Butterfly Valve

Configure Specs
High-Quality Non-Rising Stem Elastic Seat Sealing Gate Valve

High-Quality Non-Rising Stem Elastic Seat Sealing Gate Valve

Configure Specs

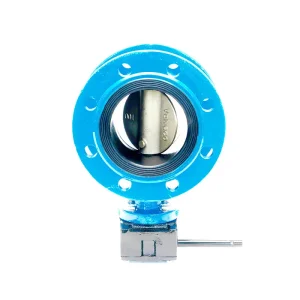

High-Quality Marine flange type manual operated butterfly valve

High-Quality Marine Flange Type Manual Butterfly Valve

Configure Specs

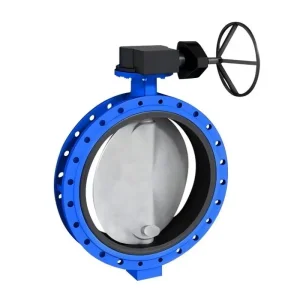

Wholesale High-Quality U Section Butterfly Valve

Wholesale High-Quality U Section Butterfly Valve

Configure Specs
Wholesale Stainless Steel Ultra-Thin Ball Valve

Wholesale Stainless Steel Ultra-Thin Ball Valve Fire-Safe

Configure Specs
CE Certification Micro-Resistance Ball Check Valve

CE Certification Micro-Resistance Ball Check Valve

Configure Specs
High-Quality EPDM Lining Butterfly Valve

High-Quality EPDM Lining Butterfly Valve Corrosion Resistant

Configure Specs
Wholesale Fire-Fighting Wafer Signal Butterfly Valve

Wholesale Fire-Fighting Wafer Signal Butterfly Valve

Configure Specs
Industry Whitepaper

The Engineering Evolution of Industrial Flow & Bulk Slide Gate Systems

Modern bulk material processing plants, chemical facilities, and municipal infrastructures require absolute isolation under intense pressure cycles, abrasive slurries, and aggressive particulates.

Tribological Blade Dynamics

Pneumatic slide gates operate under severe shear forces when intersecting falling columns of cement, grains, fly ash, or catalyst pellets. Precision bevel edging on 304, 316, or Hardox slide plates guarantees continuous self-cleaning action. This geometry prevents packing within bottom bonnets, eliminating mechanical jamming during high-frequency pneumatic cycling.

Polymer & Elastomer Sealing

Relying on group rubber manufacturing heritage tracing back to 1987 (Tianjin Dongfang Rubber Factory), our vulcanized seat profiles eliminate micro-void leaks. By combining virgin PTFE wipers with high-rebound EPDM or fluoroelastomer cord cores, the gate creates bi-directional bubble-tight hermetic seals compliant with MSS SP-81 standards.

High-Speed Double Acting Cylinders

Pneumatic actuation demands millisecond-level responsiveness under variable pipeline operating pressures. Heavy-duty aluminum or stainless cylinders conforming to ISO 15552 integrate magnetic piston sensors, adjustable pneumatic end-cushioning, and NAMUR-standard solenoid interfaces to prevent dynamic water hammer or pressure wave resonance.

Sourcing Excellence

Global Enterprise Procurement & Supplier Audit Framework

When EPC contractors and international distributors audit Chinese valve foundries, technical qualification hinges on verifiable in-house vertical integration, metallurgical control, and total cost of ownership (TCO).

Foundry Metallurgical Traceability

Unlike export trading houses that assemble outsourced castings, Tianjin Top Valve operates independent foundry facilities dating back to 1996 (Tianjin Donglian Valve Factory). Every batch of ductile iron (QT450-10, GGG40/50), WCB carbon steel, CF8M stainless steel, or aluminum bronze undergoes on-site optical emission spectrometry. Raw melt reports and heat numbers are permanently stamped onto every valve body for complete EN 10204 3.1 certification.

Pneumatic Stroke Reliability Testing

Factory acceptance testing (FAT) for automated pneumatic slide gates involves rigorous 100% pneumatic seat bubble leak verification alongside hydrostatic shell integrity evaluations according to ISO 5208 and DIN EN 12266-1. Multi-cycle rapid open-close tests evaluate linear guide deflection, seal packing tension, and solenoid valve electrical draw across low-temperature and high-temperature simulations.

1987
Rubber Compounding Heritage
23,000 m²
Manufacturing Campus Area
100%
Hydrostatic & Shell Pressure Tested
50+
Export Destination Countries
Engineered Deployments

Macro Industry Solutions for High-Velocity Bulk Processing

Pneumatic slide gate assemblies and automated valves provide reliable process isolation across diverse harsh production lines worldwide.

Cement, Clinker & Fly Ash Silos

Cement discharge hoppers require heavy abrasion resistance. Our slide gates incorporate replaceable Ni-Hard or ceramic liners, stellited blade edges, and pressurized air purges that continuously dislodge compacted clinker dust from side seals during operation, preventing premature packing wear.

Food, Starch & Grain Silo Terminals

Handling food-grade dry powders demands zero dead zones and FDA-compliant elastomers. Fabricated from 316L stainless steel with electro-polished internal Ra < 0.4 µm surfaces, our slide gates prevent material cross-contamination, supporting rapid CIP (Clean-in-Place) sanitation cycles.

Mining Tailings & Mineral Slurries

Abrasive slurry pipelines rely on robust valve architectures. Alongside our grooved and wafer butterfly lines featuring aluminum bronze or ceramic discs, heavy-duty knife slide gates deliver dependable shear force through slurries without gate binding or gland box leakage.

Chemical & Polyolefin Pellet Lines

Pneumatic conveying of plastic granules, PTA powder, and reactive chemical reagents demands absolute fugitive emission control. Pure PTFE encapsulated seals and helium-tested bonnet gaskets prevent environmental VOC leakage while ensuring smooth pellet discharge.

Biomass & Waste-to-Energy Boilers

Feeding wood pellets, refuse-derived fuel (RDF), or high-temperature ash into gasifiers requires thermal expansion tolerance up to 450°C. Engineered bonnet clearances and stainless steel water-cooling jackets prevent thermal binding of linear slide blades during continuous operation.

Municipal Potable & Industrial Water

Large-scale water treatment networks deploy resilient seat gate valves, silent check valves, and WRAS-approved butterfly valves. Our factory compounds high-tensile EPDM in-house to ensure zero organic leaching and long-term elasticity across buried and pumping station duties.

Technical Specifications

Engineering Architecture & Flange Standards Comparison

Review our comprehensive technical parameters for specifying industrial pneumatic slide gates and companion pipeline isolation valves.

Valve Category Body Metallurgy Actuation Methods Sealing Technology Flange Standards Certifications
Pneumatic Slide Gate Ductile Iron, WCB, SS304, SS316L, Hardox ISO 15552 Double-Acting Pneumatic Cylinder PTFE Scraper + EPDM/Viton O-Ring Core ANSI 150#, DIN PN10/PN16, Custom Square Flange CE / ISO 9001
Resilient Seat Gate Valve Ductile Iron GGG50 / EN-GJS-500-7 Non-Rising Stem (NRS), OS&Y Handwheel, Electric EPDM Rubber-Encapsulated Ductile Iron Wedge EN 1092-2 PN10/PN16, DIN 3202 F4/F5, BS 5163 WRAS / CE
High-Performance Butterfly Ductile Iron, WCB, CF8M, Al-Bronze Pneumatic Rack & Pinion, Worm Gear, Electric WRAS-Grade EPDM, NBR, Ceramic, PTFE Lined Wafer, Lug, Double-Flanged (ASME B16.5, JIS) WRAS / CE / ISO
Anti-Water Hammer Check Ductile Iron, CF8, WCB Carbon Steel Automatic Spring-Assisted Silent Return Metal-to-Metal + Resilient NBR/EPDM Face Wafer Lift, Dual Plate, Micro-Resistance Ball CE Marked
Cryogenic & High-Temp Globe Forged Steel A105, 316 Stainless Steel Manual Handwheel, Bevel Gear, Pneumatic Linear Stellite Hardfaced Disc & Seat Ring ASME Class 150# to 800#, Butt-Weld, Flanged ISO 14001 / CE
Engineering Roadmap

Technical Roadmap & Industry 4.0 Smart Actuation (2025–2030)

The industrial valve market is moving toward autonomous condition monitoring, predictive lifecycle calculations, and advanced green foundry decarbonization.

IO-Link Smart Pneumatics

Future valve packages integrate IO-Link digital positioners directly into pneumatic cylinder manifolds. By monitoring velocity drops down to the microsecond level, the control system diagnoses dust caking or seal degradation before a process disruption occurs.

Nano-Composite Blade Coatings

Through Diamond-Like Carbon (DLC) vapor deposition and high-velocity oxygen fuel (HVOF) tungsten carbide cladding, slide gate blade surfaces achieve hardness ratings beyond 68 HRC, extending operational lifespans fivefold within abrasive silica sand and fly ash flows.

Sustainable Melt Metallurgy

In support of global ESG procurement goals, our Tianjin foundry lines utilize induction electric melting and sand reclamation systems achieving 92% re-use efficiency, lowering embodied carbon emissions per ton of finished valve casting.

Technical Clarifications

Buyer FAQ: Specifying Pneumatic Slide Gates & Valves

Direct technical answers addressing engineering dimensions, pneumatic supply requirements, seat selections, and export logistics.

What pressure range and air supply requirements are needed for pneumatic slide gates?
Standard pneumatic slide gates are engineered for operating air supply pressures of 0.4 to 0.8 MPa (4 to 8 bar / 60 to 115 psi). For bulk gravity discharge systems under atmospheric pressure or silos with positive pneumatic conveying up to 0.3 MPa, our double-acting cylinders are sized with a minimum 1.5x to 2.0x safety factor over the calculated sliding friction and material column head pressure.
How do you prevent powder material from packing into the gate's rear frame?
We employ a beveled blade cutting edge combined with deflector cones, ultra-high-molecular-weight polyethylene (UHMW-PE) side guides, and integrated wiper seals. On high-duty powders like cement or talc, pneumatic purge nozzles inject clean instrument air into the slide frame cavity during the opening stroke, clearing fines automatically.
Can Tianjin Top Valve supply valves with WRAS drinking water certification?
Yes. Selected butterfly valve models, including 4020G, 4020L, 4325G, and 4325L, feature WRAS (Water Regulations Advisory Scheme) certification for potable drinking water installations. Our internal rubber laboratory compounds pristine EPDM liners tested against cytotoxicity and microbial growth.
What are the key advantages of in-house rubber compounding for slide and gate valves?
Because Tianjin Dongfang Rubber Factory has compounded elastomer components since 1987, we precisely control polymer purity, cure times, and carbon black ratios. This ensures resilient memory, tensile strength greater than 14 MPa, and minimal compression set under sustained mechanical loads, preventing seal hardening and premature leaks.
What international flange standards and dimension drillings are available?
Our CNC machining centers produce flange drillings matching ASME/ANSI B16.5 Class 125/150, EN 1092-2 PN6/PN10/PN16, AS 2129 Table D/E, and JIS B2239 10K. Slide gates can also be engineered to custom rectangular or square pattern configurations based on client silo chute prints.
How does your factory handle production lead times and global ocean freight?
Situated in Wuxia Industrial Park, Dongli District, Tianjin, our manufacturing campus offers direct highway access to Tianjin Xingang Port (Northern China's largest seaport). Typical lead times for standard casting configurations range from 20 to 30 days, packed in custom vacuum-sealed bubble wrap and reinforced export fumigated timber crates.

Require Custom Pneumatic Slide Gates or Flow Control Valving?

Connect directly with our Tianjin valve engineering team. Share pipeline dimensions, line media, pressure conditions, and actuation parameters for comprehensive technical datasheets and fast quotation within 24 hours.

Request an Engineering Quote
Factory Production Line

Specialized Check, Globe & Automated Flow Control Solutions

Manufactured with independent foundry control and CNC precision for power generation, vacuum systems, marine pipelines, and corrosive chemical handling.

CE Certification Stainless Steel Single Disc Wafer Check Valve

Stainless Steel Single Disc Wafer Check Valve

Configure Specs
Wholesale Full Rubber Coated Check Valve

Wholesale Full Rubber Coated Check Valve Factory

Configure Specs
High-Quality Grooved End Butterfly Valve

High-Quality Grooved End Butterfly Valve Durable

Configure Specs
High-Quality High-Temperature Vacuum Isolation Globe Valve

High-Temperature Vacuum Isolation Globe Valve

Configure Specs
High-Quality High-Performance Electrical Butterfly Valve

High-Performance Electrical Butterfly Valve

Configure Specs
CE Certification Compact Wafer Lift Check Valve

Compact Wafer Lift Check Valve Low Pressure Drop

Configure Specs
High-Quality Silent Check Valve for Water Supply Systems

High-Performance Silent Check Valve Water Supply

Configure Specs
High-Quality PTFE Lined Pinless Butterfly Valve

High-Quality PTFE Lined Pinless Butterfly Valve Factory

Configure Specs
