Wholesale Wafer Butterfly Valve - Durable & Efficient Flow Control Solution Suppliers, Factory

1 / 3

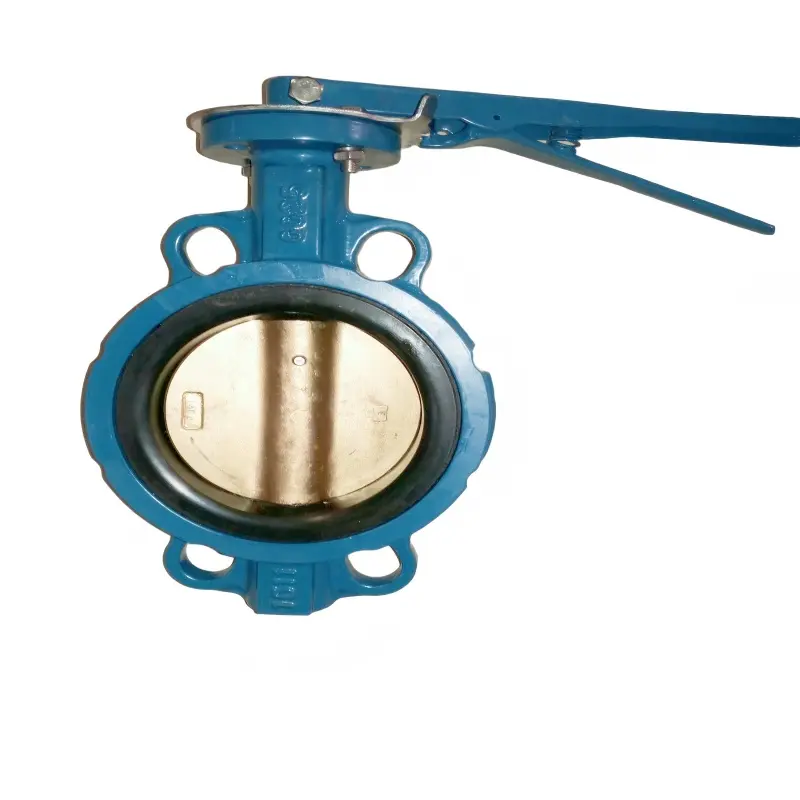

Wholesale Wafer Butterfly Valve - Durable & Efficient Flow Control Solution Suppliers, Factory

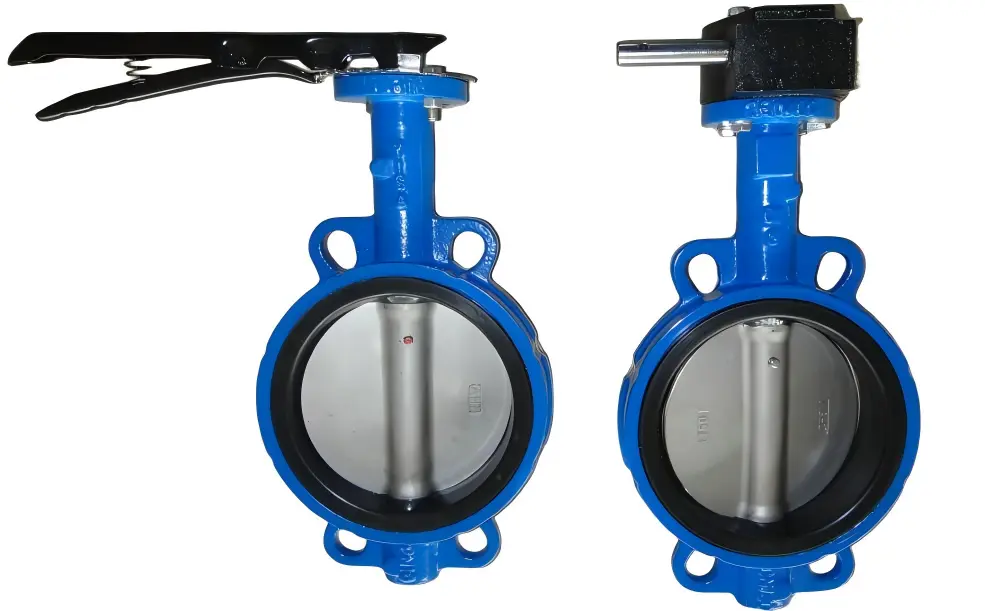

Discover our premium A-type and LT-type butterfly valves, designed for exceptional performance in various applications. We offer a wide range of options, including manual handles, worm gears, pneumatic, and electric actuators to suit your operational needs. Our butterfly valves are available in an extensive diameter range from DN25 to DN1200, ensuring that you find the perfect fit for your system requirements. Optimize your processes with our reliable, high-quality butterfly valves today!

Send Inquiry

Product Description

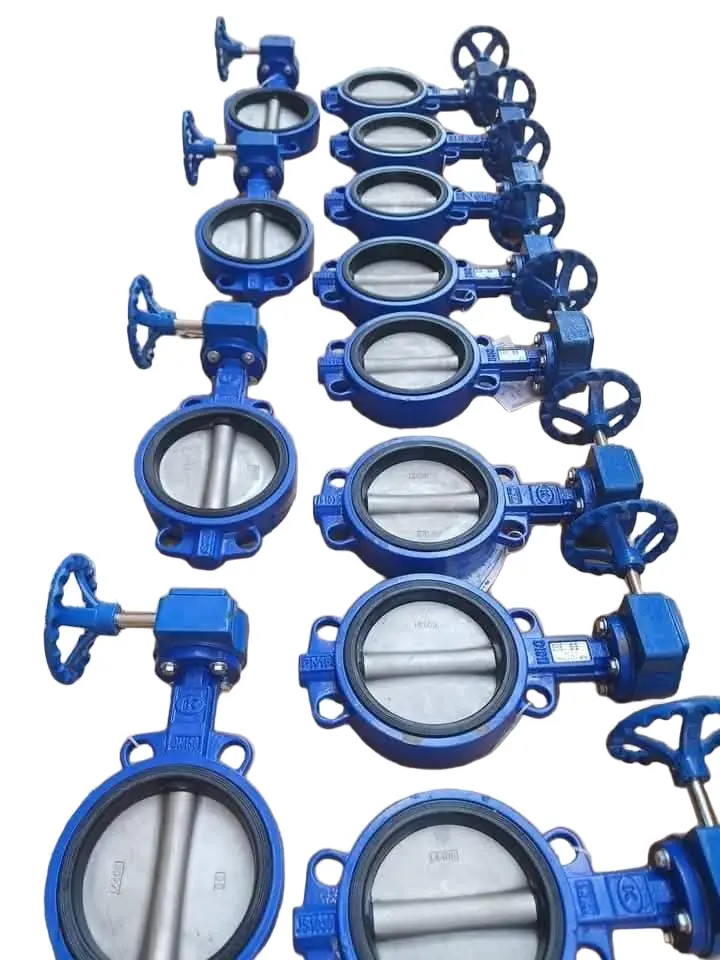

Wafer butterfly valves offer several significant advantages. Firstly, their compact and lightweight design makes them highly space-efficient, ideal for installations where space is limited. Unlike traditional valves, their wafer-style body can be easily sandwiched between two flanges, reducing installation complexity and saving both time and cost.

In terms of operation, these valves provide quick opening and closing, typically achieved with a 90-degree rotation of the handle or actuator. This rapid response makes them suitable for applications requiring frequent on-off control. The streamlined disc design minimizes flow resistance, ensuring low pressure drop and high flow capacity, which improves system efficiency and reduces energy consumption.

Maintenance is another strong point. The simple structure of wafer butterfly valves means fewer components, decreasing the likelihood of failure and making repairs straightforward. Moreover, many models feature replaceable seat rings, allowing for easy maintenance without replacing the entire valve.

Regarding material versatility, they can be manufactured from various materials, including stainless steel, ductile iron, and plastic, enabling them to withstand different media, temperatures, and corrosive environments. This adaptability makes wafer butterfly valves a reliable choice across diverse industries, from water treatment and HVAC systems to chemical processing and power generation.

DIMENSIONS in(mm)

Size	A	B	C2	D	E	F	KxK	Top PCD	Plate HOLE N-Dia
DN50	140	70	105	41	90	30	11x11	70	4-θ9
DN65	152	76	117	44	90	30	11x11	70	4-θ9
DN80	159	91	130	44	90	30	11x11	70	4-θ9
DN100	178	102	162	51	90	30	14x14	70	4-θ9
DN125	191	119	187	54	90	30	14x14	70	4-θ9
DN150	203	133	216	54	90	30	17x17	70	4-θ11
DN200	241	170	271	64	125	30	17x17	102	4-θ11
DN250	273	210	330	64	125	30	22x22	102	4-θ11
DN300	308	243	376	76	125	30	22x22	102	4-θ11

Size	A	B	C2	D	E	F	K	SxS/d	Top Plate Data PCD
DN350	413	267	45	150	80	525	470	22x22	125
DN400	451	309	45	175	90	585	525	27x27	140
DN450	467	318	45	175	109	650	585	27x27	140
DN500	525	350	45	175	127	720	650	36x36	140
DN600	607	410	45	210	154	850	770	36x36	165

Wafer Butterfly Valve Diagram Dimensions

PN10 Specifications

Size	A	B	C	L	фD	фK	Nxфd	4xM	фE	фF	a°	G	H	O	P	фR	Weight(Kg)
DN700	784	581	163	169	895	840	24xф31	/	741	695	15	355	146	146	228	400	361
DN800	832	655	188	195	1015	950	24xф34	/	847	794.7	15	355	146	146	228	400	444
DN900	974	745	203	211	1115	1050	24xф34	4xM30	943	864.7	12.857	377	170	170	243	450	660
DN1000	1054	803	216	224	1230	1160	24xф37	4xM33	1049	965.7	12.857	377	170	170	243	450	830

PN16 Specifications

Size	A	B	C	L	фD	фK	Nxфd	4xM	фE	фF	a°	G	H	O	P	фR	Weight(Kg)
DN700	784	581	163	169	910	840	20xф37	4xM33	741	695	15	355	146	146	228	400	396
DN800	926	655	188	195	1025	950	20xф40	4xM36	847	794.7	15	377	170	170	243	450	573
DN900	974	745	203	211	1125	1050	24xф40	4xM36	943	864.7	12.857	377	170	170	243	450	690
DN1000	1110	803	216	224	1255	1170	24xф43	4xM39	1049	965.7	12.857	476	180	250	302	450	1025

Wafer Butterfly Valve Large Size Diagram

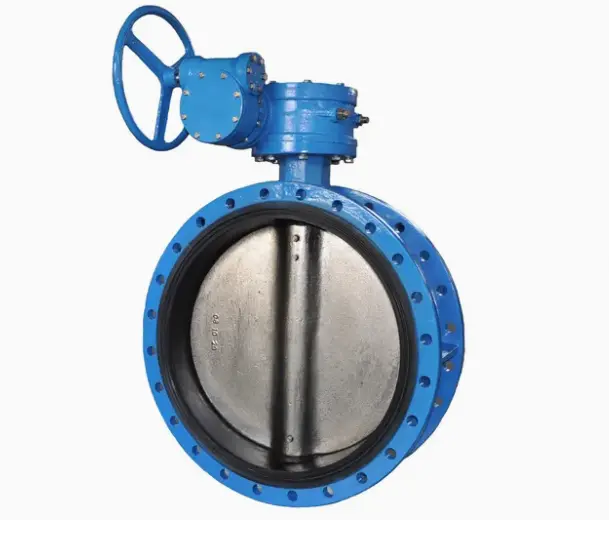

Wafer Butterfly Valve Technical Structure

Frequently Asked Questions

What is a wafer butterfly valve and how does it work?

A wafer butterfly valve is a quarter-turn rotational valve designed to isolate or regulate fluid flow. Its disc is positioned in the center of the pipe, rotating 90 degrees via an actuator or manual lever to fully open or close the passage, held in place between pipe flanges.

What is the difference between wafer and lug butterfly valves?

Wafer butterfly valves are clamped directly between two pipe flanges using through-bolts, making them lighter, more compact, and cost-efficient. Lug butterfly valves have threaded inserts around the body, allowing them to be installed without nuts or used in dead-end service.

Can wafer butterfly valves be used for both throttling and isolation?

Yes, while they excel at quick on-off isolation, wafer butterfly valves can also provide reliable throttling and flow regulation capabilities when positioned at partial opening angles.

What materials are suitable for corrosive applications?

For corrosive environments, stainless steel bodies paired with PTFE (Teflon) or specialized elastomer seats provide superior chemical resistance, preventing media degradation and premature wear.

What are the installation recommendations for wafer butterfly valves?

Ensure proper alignment between the adjoining pipe flanges to avoid pinching the disc or elastomer seat. Tighten bolts in a cross pattern uniformly to ensure an even seal and prevent body distortion.

How often does a wafer butterfly valve require maintenance?

Due to their streamlined design with few moving parts, maintenance intervals are minimal. Periodic visual checks for disc wear, stem seal integrity, and seat condition are recommended based on system cycle frequency and medium severity.
