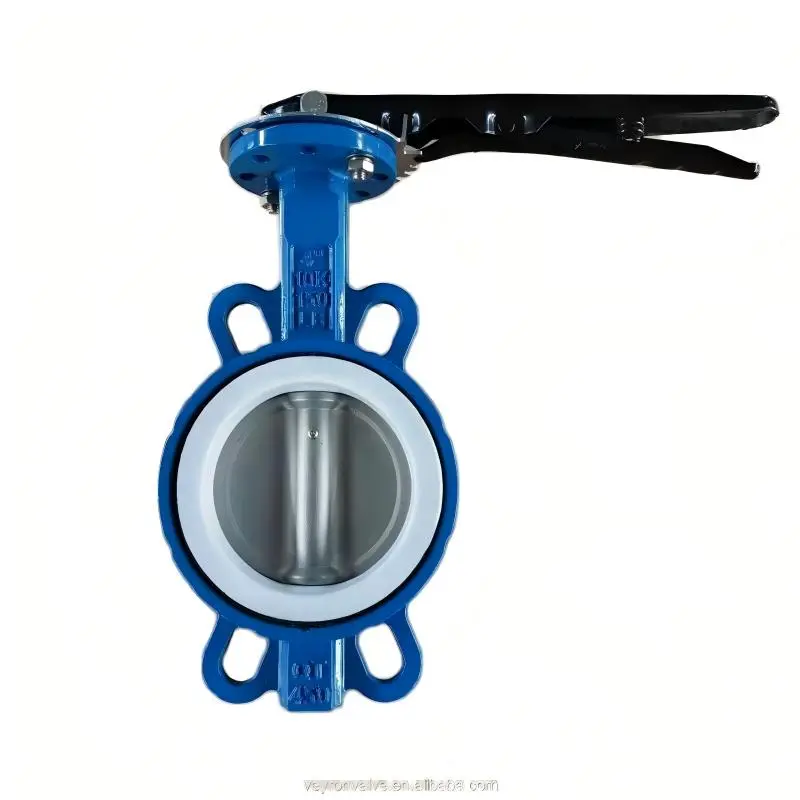

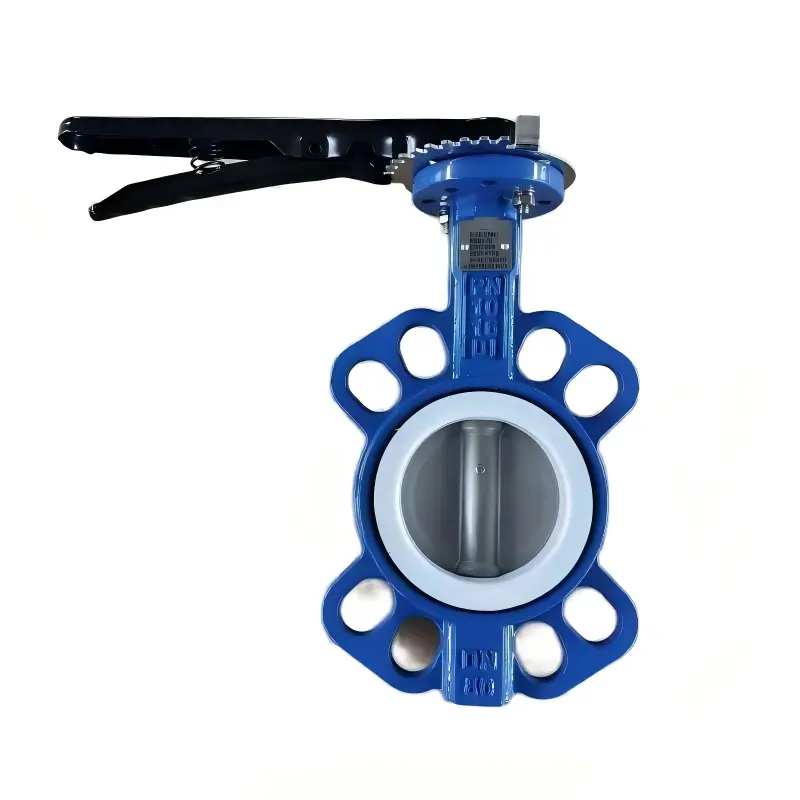

Wholesale PTFE Lined Cast Body Butterfly Valve Suppliers, Factory
Product Description
Application
The PTFE lined butterfly valve is a cornerstone solution in modern fluid handling, specifically engineered to overcome the limitations of traditional metal valves when dealing with aggressive media. By integrating a full Polytetrafluoroethylene (PTFE) liner with the efficient quarter-turn mechanism of a butterfly valve, this design offers a suite of distinct advantages that make it indispensable across critical industries.
Unrivaled Corrosion Resistance
The primary advantage of a PTFE lined butterfly valve is its near-universal chemical resistance. PTFE is one of the most inert polymers available, capable of withstanding exposure to virtually all strong acids (including hydrofluoric acid), strong alkalis, organic solvents, and oxidizers. Unlike stainless steel or alloy valves, the PTFE liner creates a complete barrier, preventing the process fluid from ever touching the metal valve body. This eliminates the risk of pitting, crevice corrosion, and galvanic corrosion, dramatically extending the valve's service life in harsh chemical environments.
Superior Contamination Control and Purity
In industries such as pharmaceuticals, biotechnology, and food & beverage processing, maintaining product purity is paramount. PTFE is FDA-approved and features an extremely smooth, non-porous surface that prevents bacterial growth and microbial adhesion. Furthermore, because the fluid only contacts the inert polymer lining, there is zero risk of metallic ion leaching into the product stream. This makes PTFE lined valves the gold standard for hygienic applications and ultra-pure water systems.
Exceptional Non-Stick Properties and Low Friction
PTFE possesses one of the lowest coefficients of friction among solid materials. This non-stick characteristic ensures that viscous fluids, slurries, or sticky media do not accumulate on the disc or liner surface. This self-cleaning effect prevents clogging, reduces torque requirements during operation, and allows for smoother throttling and shut-off. It also simplifies cleaning-in-place (CIP) procedures, reducing downtime and maintenance costs.
High-Temperature Performance and Versatility
While standard rubber liners (like EPDM or NBR) have limited temperature tolerance, PTFE lined butterfly valves typically operate effectively in a broad temperature range, often from -40°C to +200°C (-40°F to +392°F). This thermal stability makes them suitable for both cryogenic services and high-temperature steam applications, offering greater versatility than many alternative elastomeric valves.
Cost-Effective Engineering Solution
Compared to solid-body valves made from exotic alloys like Hastelloy or Titanium, PTFE lined butterfly valves provide a highly economical solution for corrosion resistance. They deliver comparable performance in terms of chemical compatibility at a fraction of the material cost. The quarter-turn design also results in a compact, lightweight valve that is easy to install and automate with smaller, less expensive actuators.
In conclusion, the PTFE lined butterfly valve excels by combining robust chemical immunity, hygienic integrity, and operational efficiency. It is the optimal choice for engineers seeking a reliable, low-maintenance, and cost-effective valve solution for challenging industrial processes.The PTFE lined butterfly valve is a cornerstone solution in modern fluid handling, specifically engineered to overcome the limitations of traditional metal valves when dealing with aggressive media. By integrating a full Polytetrafluoroethylene (PTFE) liner with the efficient quarter-turn mechanism of a butterfly valve, this design offers a suite of distinct advantages that make it indispensable across critical industries.
Product Performance Specification
| Nominal diameter | Nominal pressure | Applicable temperature | Applicable media | Connection Type | Conection Standard |
|---|---|---|---|---|---|
| DN40-DN200 (1.5”~80”) | PN1.0-1.6MPa | -30~150 ℃ | Strong acid, strong alkali, metal etchant, liquid oxygen, desulfurization liquid, sea water, drinking water, food, etc. | Wafer type (flangeless A type, U type, single flange type) Single clamp type (LT body), double flange | GB/DIN/BS/JIS/ASME/EN/ANSI/ISO |

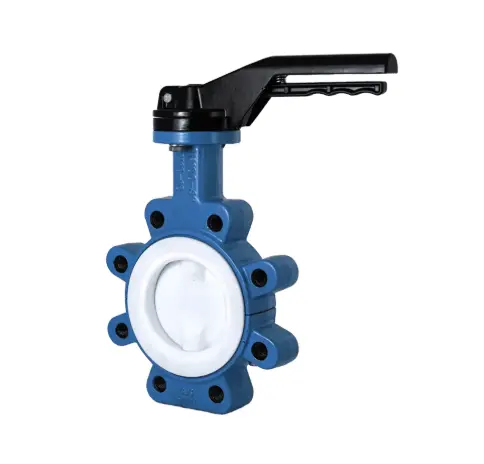

Product Showcase
Packaging
Frequently Asked Questions (FAQ)
The valve is specifically designed for corrosive and demanding media, including strong acids (such as hydrofluoric acid), strong alkalis, metal etchants, liquid oxygen, desulfurization liquids, sea water, drinking water, and high-purity food products.
The valve operates at a nominal pressure rating of PN1.0 to 1.6 MPa and an applicable temperature range typically from -30°C to 150°C, capable of handling varying thermal and cryogenic process conditions.
It accommodates multiple connection types including Wafer type (flangeless A type, U type, single flange), single clamp type (LT body), and double flange designs, fully compliant with GB, DIN, BS, JIS, ASME, EN, ANSI, and ISO standards.
PTFE lined valves isolate the metallic valve body completely from corrosive process fluids, providing equivalent chemical resistance to costly alloys such as Hastelloy or Titanium at a significantly lower capital cost and with lighter weight.
PTFE is FDA-approved, non-porous, and features extremely low friction. Its smooth non-stick surface prevents bacterial accumulation, avoids particle buildup, and allows fast, efficient cleaning without product contamination or metal ion leaching.
