High-Quality Aluminum Bronze Butterfly Valve - Durable & Corrosion Resistant Suppliers, Manufacturer
Product Description
Technical Specifications
| Item | Specification |
|---|---|
| Product | Aluminum Bronze Butterfly Valve |

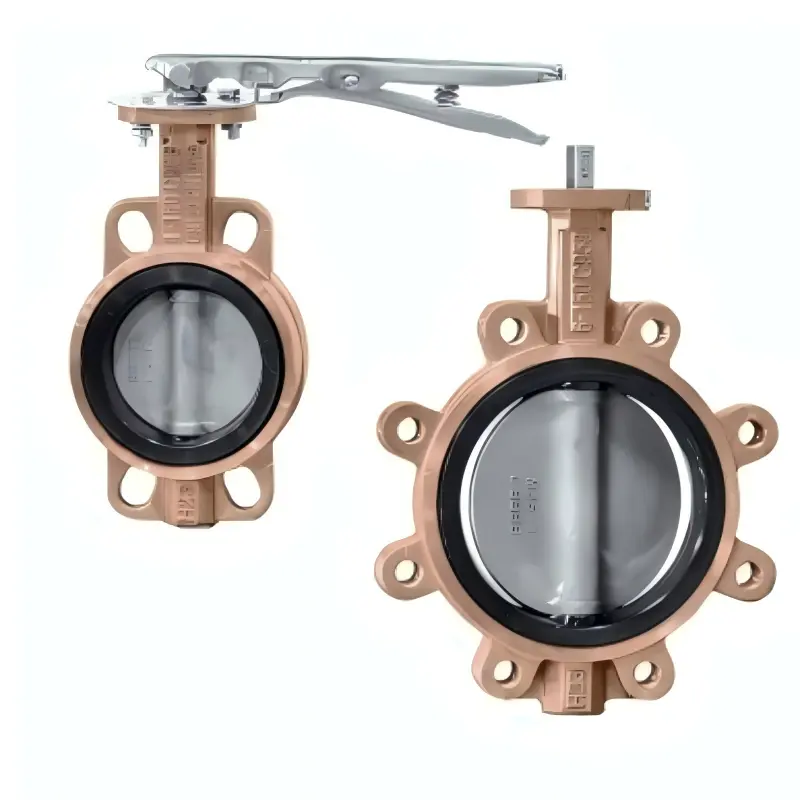

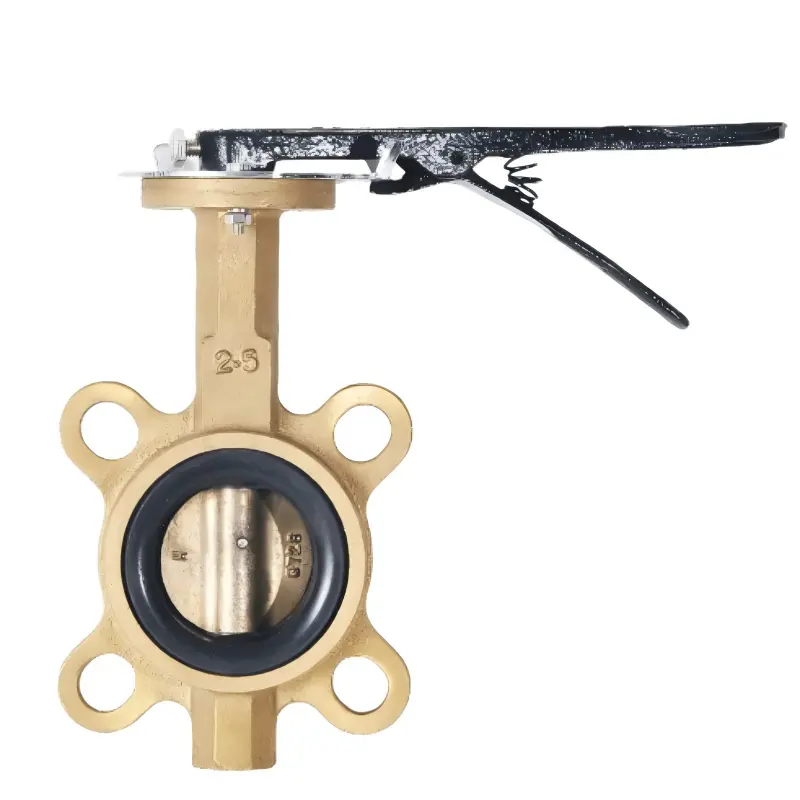

| Valve Type | Wafer / Lug / Flanged |
| Size Range | DN50–DN1200 / 2"–48" |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Body Material | Aluminum Bronze C95400 / C95800 |
| Disc Material | Aluminum Bronze / Stainless Steel |
| Stem Material | SS316 / 17-4PH / Monel |
| Seat Material | EPDM / NBR / FKM / PTFE |
| Temperature | -20°C to +120°C* |

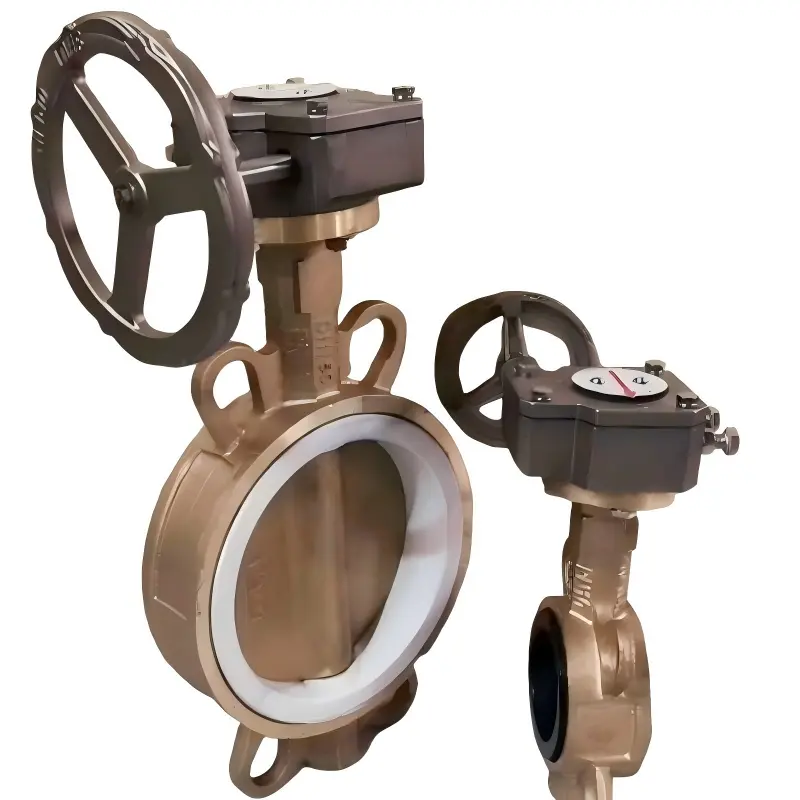

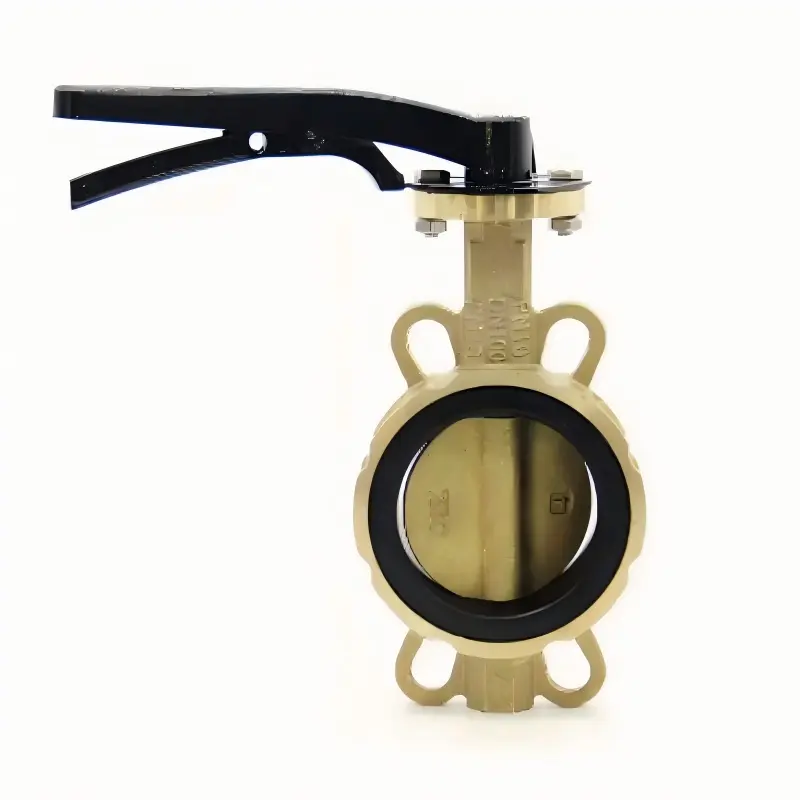

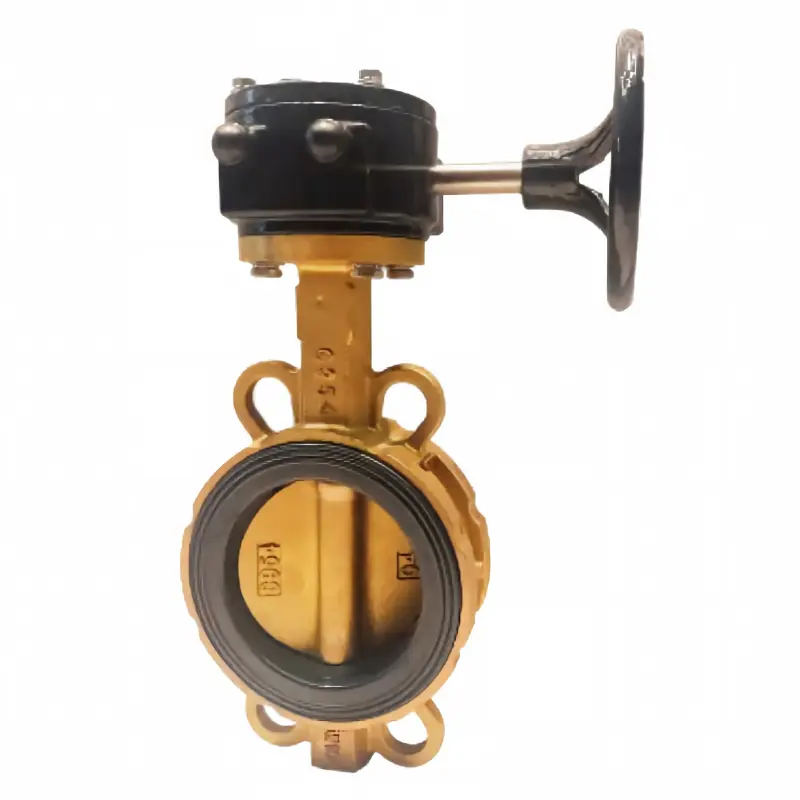

| Operation | Lever / Gear / Pneumatic / Electric |
| Design Standard | API 609 / EN 593 |
| Face-to-Face | EN 558 / API 609 |
| Flange Standard | EN 1092-2 / ASME B16.5 |
| Testing Standard | API 598 / EN 12266 |
| Applications | Seawater, Marine, Offshore, Desalination, Cooling Water, Industrial |
Product Advantages
Excellent Corrosion Resistance
Aluminum bronze provides strong resistance to seawater, saltwater, and corrosive environments, making it ideal for marine and offshore applications.
High Mechanical Strength
The valve offers excellent strength and wear resistance, ensuring reliable performance under demanding operating conditions.
Long Service Life
High-quality aluminum bronze construction helps reduce corrosion-related damage and extends valve service life.
Low Operating Torque
The compact butterfly design requires relatively low operating torque, allowing easy manual or automated operation.
Wide Application Range
Suitable for seawater cooling, desalination plants, shipbuilding, offshore platforms, fire protection, and industrial pipelines.
Flexible Actuation Options
Available with lever, gearbox, pneumatic, or electric actuators to meet different control requirements.
Easy Installation and Maintenance
Compact construction and lightweight design simplify installation, inspection, replacement, and routine maintenance.
Multiple Material Options
C95400, C95500, and C95800/Nickel Aluminum Bronze materials can be selected according to pressure, temperature, and corrosion conditions.
In terms of operation, these valves provide quick opening and closing, typically achieved with a 90-degree rotation of the handle or actuator. This rapid response makes them suitable for applications requiring frequent on-off control. The streamlined disc design minimizes flow resistance, ensuring low pressure drop and high flow capacity, which improves system efficiency and reduces energy consumption.
Dimensions in (mm)
DN50 – DN300
DN350 – DN600
| Size | A | B | C2 | D | E | F | KxK | Top PCD | Plate Hole N-Dia |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 140 | 70 | 105 | 41 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN65 | 152 | 76 | 117 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN80 | 159 | 91 | 130 | 44 | 90 | 30 | 11x11 | 70 | 4-θ9 |
| DN100 | 178 | 102 | 162 | 51 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN125 | 191 | 119 | 187 | 54 | 90 | 30 | 14x14 | 70 | 4-θ9 |
| DN150 | 203 | 133 | 216 | 54 | 90 | 30 | 17x17 | 70 | 4-θ11 |
| DN200 | 241 | 170 | 271 | 64 | 125 | 30 | 17x17 | 102 | 4-θ11 |
| DN250 | 273 | 210 | 330 | 64 | 125 | 30 | 22x22 | 102 | 4-θ11 |
| DN300 | 308 | 243 | 376 | 76 | 125 | 30 | 22x22 | 102 | 4-θ11 |
| Size | A | B | C2 | D | E | F | K | SxS/d | Top Plate PCD |
|---|---|---|---|---|---|---|---|---|---|
| DN350 | 413 | 267 | 45 | 150 | 80 | 525 | 470 | 22x22 | 125 |
| DN400 | 451 | 309 | 45 | 175 | 90 | 585 | 525 | 27x27 | 140 |
| DN450 | 467 | 318 | 45 | 175 | 109 | 650 | 585 | 27x27 | 140 |
| DN500 | 525 | 350 | 45 | 175 | 127 | 720 | 650 | 36x36 | 140 |
| DN600 | 607 | 410 | 45 | 210 | 154 | 850 | 770 | 36x36 | 165 |
Large Diameter Dimensions (PN10 & PN16)
PN10 Dimensions
PN16 Dimensions
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN700 | 784 | 581 | 163 | 169 | 895 | 840 | 24xф31 | / | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 361 |
| DN800 | 832 | 655 | 188 | 195 | 1015 | 950 | 24xф34 | / | 847 | 794.7 | 15 | 355 | 146 | 146 | 228 | 400 | 444 |
| DN900 | 974 | 745 | 203 | 211 | 1115 | 1050 | 24xф34 | 4xM30 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 660 |
| DN1000 | 1054 | 803 | 216 | 224 | 1230 | 1160 | 24xф37 | 4xM33 | 1049 | 965.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 830 |
| Size | A | B | C | L | фD | фK | Nxфd | 4xM | фE | фF | a° | G | H | O | P | фR | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN700 | 784 | 581 | 163 | 169 | 910 | 840 | 20xф37 | 4xM33 | 741 | 695 | 15 | 355 | 146 | 146 | 228 | 400 | 396 |
| DN800 | 926 | 655 | 188 | 195 | 1025 | 950 | 20xф40 | 4xM36 | 847 | 794.7 | 15 | 377 | 170 | 170 | 243 | 450 | 573 |
| DN900 | 974 | 745 | 203 | 211 | 1125 | 1050 | 24xф40 | 4xM36 | 943 | 864.7 | 12.857 | 377 | 170 | 170 | 243 | 450 | 690 |
| DN1000 | 1110 | 803 | 216 | 224 | 1255 | 1170 | 24xф43 | 4xM39 | 1049 | 965.7 | 12.857 | 476 | 180 | 250 | 302 | 450 | 1025 |
Product Overview & Video Demonstration
Frequently Asked Questions (FAQ)
What makes Aluminum Bronze ideal for seawater and marine environments?
Aluminum bronze (such as C95400 and C95800) forms a tough, adherent copper oxide film that regenerates quickly when damaged. This protective layer delivers exceptional resistance against pitting, crevice corrosion, and cavitation in aggressive saline and brackish environments.
Which end-connection types are available for this butterfly valve?
The valve is available in wafer, lug, and double-flanged configurations, adhering to standard dimensions such as API 609, EN 558, ASME B16.5, and EN 1092-2 across nominal sizes from DN50 up to DN1200.
How do I choose the correct seat material (EPDM, NBR, FKM, PTFE)?
Selection depends on the operating medium and temperature: EPDM is best suited for general seawater, cooling water, and mild chemicals; NBR is ideal for oily seawater and hydrocarbon traces; FKM offers elevated thermal and chemical endurance; and PTFE provides maximum chemical resistance.
Can these butterfly valves be operated automatically?
Yes. In addition to manual hand lever and worm gear operators, the valves feature standardized top flanges compatible with pneumatic (double-acting or spring-return) and multi-turn/quarter-turn electric actuators for automated process loops.
What pressure testing and design standards are followed during manufacture?
The valves are engineered according to API 609 and EN 593 design specifications, and rigorously tested for shell strength and seat shut-off leakage in accordance with API 598 and EN 12266 standards.
