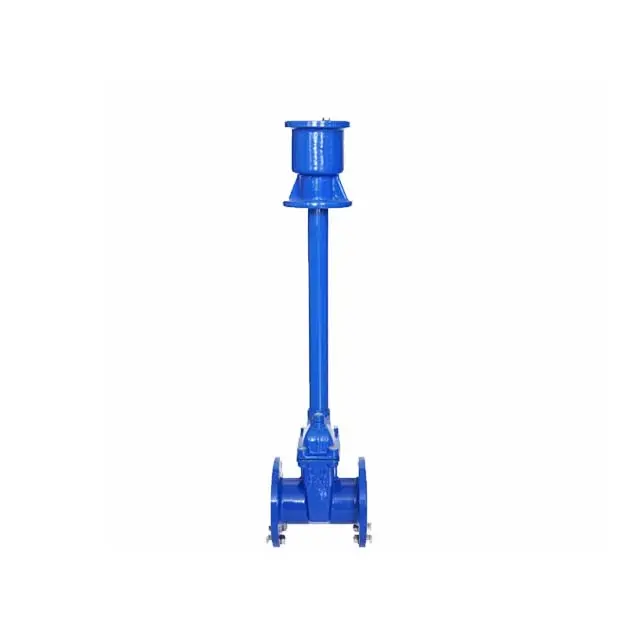

High-Quality Buried Elastic Seat Gate Valve for Reliable Flow Control Supplier, Factories
Product Description
Product Overview & Models

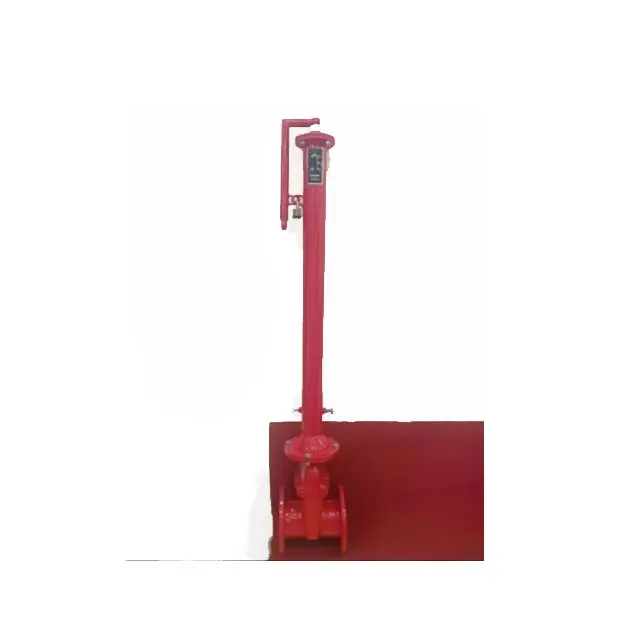

FUV TYPE

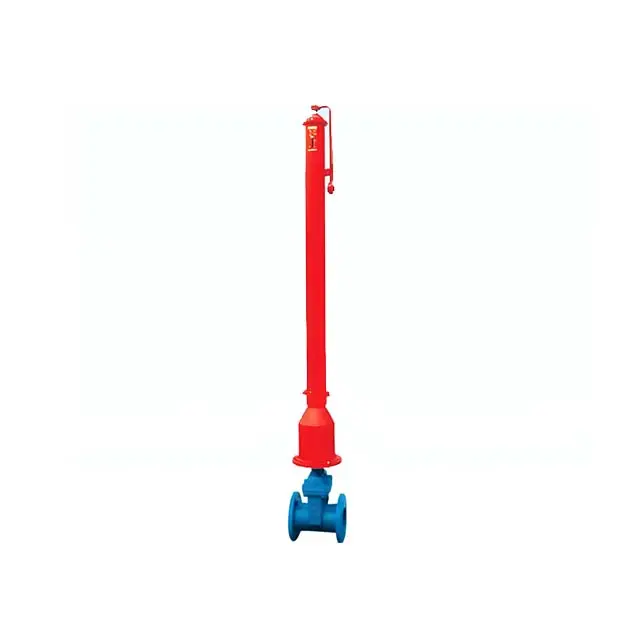

Fire buried (telescopic rod) elastic seat seal gate valve group

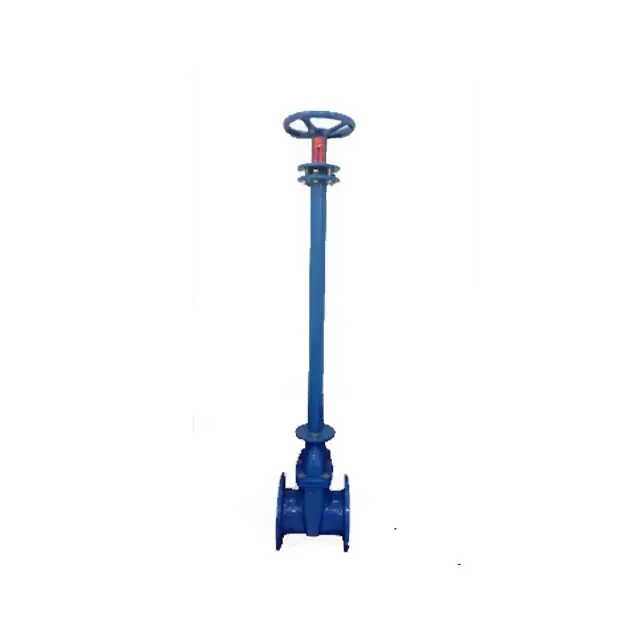

WUV TYPE
Water supply buried (telescopic rod) elastic seat seal gate valve group

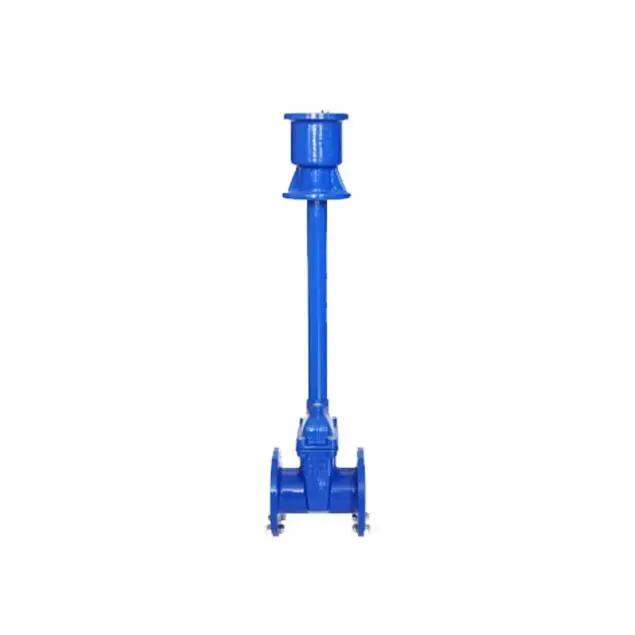

RVZM/MZ45X-16

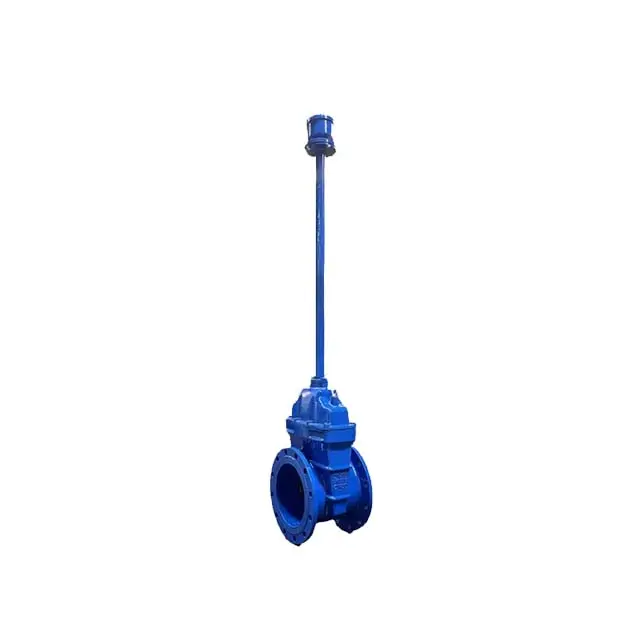

Buried (extended rod) elastic seat gate valve
Product Features
Main Performance Specifications
| Nominal Pressure PN | Applicable Media | Operating Temperature (℃) |
|---|---|---|
| 0.6 / 1.0 / 1.6 / 2.5 MPa | Cold water, hot water, oil, gas |
Natural rubber ≤ 80 NBR ≤ 80 EPDM ≤ 120 Silicone Rubber ≤ 160 Natural food rubber ≤ 80 |
Main Component Material & Technical Parameters
| No | Component Name | Material |
|---|---|---|
| 1 | Valve body | Ductile iron, plastic sprayed |
| 2 | Valve plate | Ductile iron, full rubber coating |
| 3 | Valve stem | 304, 2Gr13 / 45# Chrome plated steel |
| 4 | Bolt | Galvanized steel |
| 5 | O-ring | NBR |
| 6 | Thrust bearing | Brass, Steel |
| 7 | Valve cover | Ductile iron |
| 8 | Handwheel | Steel, cast iron, plastic spraying |
| Item / Parameter | Specification Standard 1 | Specification Standard 2 |
|---|---|---|
| Nominal pressure | 1.0MPa (10kgf/cm2) | 1.6MPa (16kgf/cm2) |
| Nominal diameter | 40 to 500mm | 40 ~ 500mm |
| Seal test pressure | 1.1MPa (11kgf/cm2) | 1.76MPa (17.6kgf/cm2) |
| Strength experimental pressure | 1.5MPa (15kgf/cm2) | 2.4MPa (24kgf/cm2) |
| Applicable temperature | 0-80 ºC | 0-80 ºC |
| Applicable media | Water, sewage, non-corrosive liquids | Water, sewage, non-corrosive liquids |
| Drive method | Manual | Manual |
| We can also provide products with special technical parameters according to customer requirements | ||
Packaging & Delivery
Frequently Asked Questions (FAQ)
They can be installed underground directly without building deep brick valve chambers. This maintenance-free design eliminates the risk of road cave-ins and stolen manhole covers while significantly reducing initial civil engineering and subsequent road reconstruction costs.
The valve extension rod features a freely adjustable telescopic design that can be customized and locked to match the exact depth from the ground surface to the pipeline, enabling easy top-side operation.
Yes. The top of the valve stem can be fitted with open/close visual indicators, remote signal transmission modules for SCADA integration, and anti-tamper locking mechanisms to prevent accidental operation.
Depending on the rubber lining material (such as NBR, EPDM, or Silicone), the valve handles cold water, hot water, sewage, industrial non-corrosive liquids, oil, and gas reliably within specified temperature thresholds.
Standard nominal diameters range from DN40 to DN500 with pressure ratings across 0.6, 1.0, 1.6, and 2.5 MPa. Custom dimensions, materials, and higher operating parameters can also be engineered upon request.
The ductile iron valve plate is fully encapsulated in premium vulcanized rubber, ensuring smooth micro-elastic compression against the plastic-sprayed valve body for zero-leakage, bi-directional sealing.
